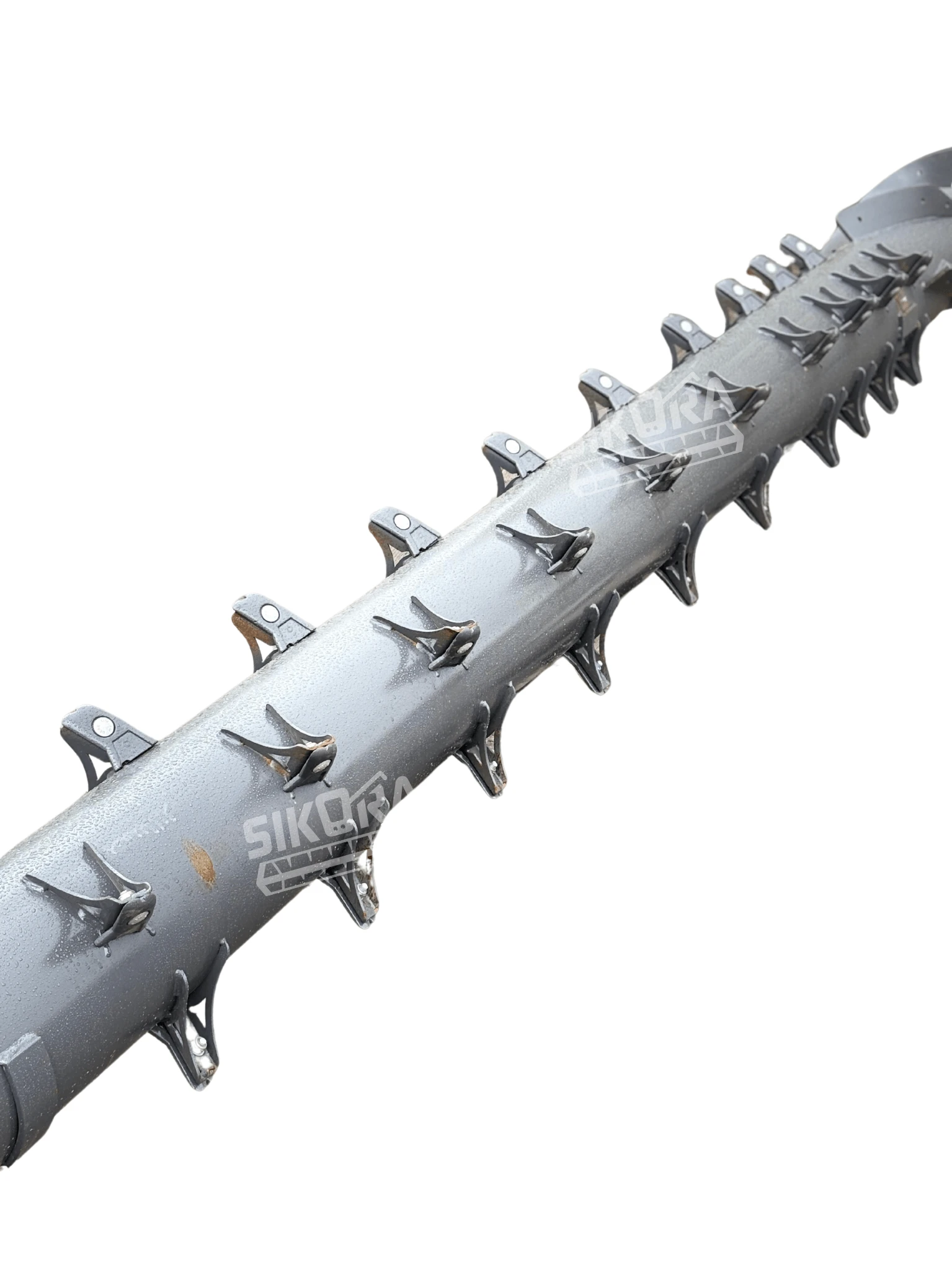

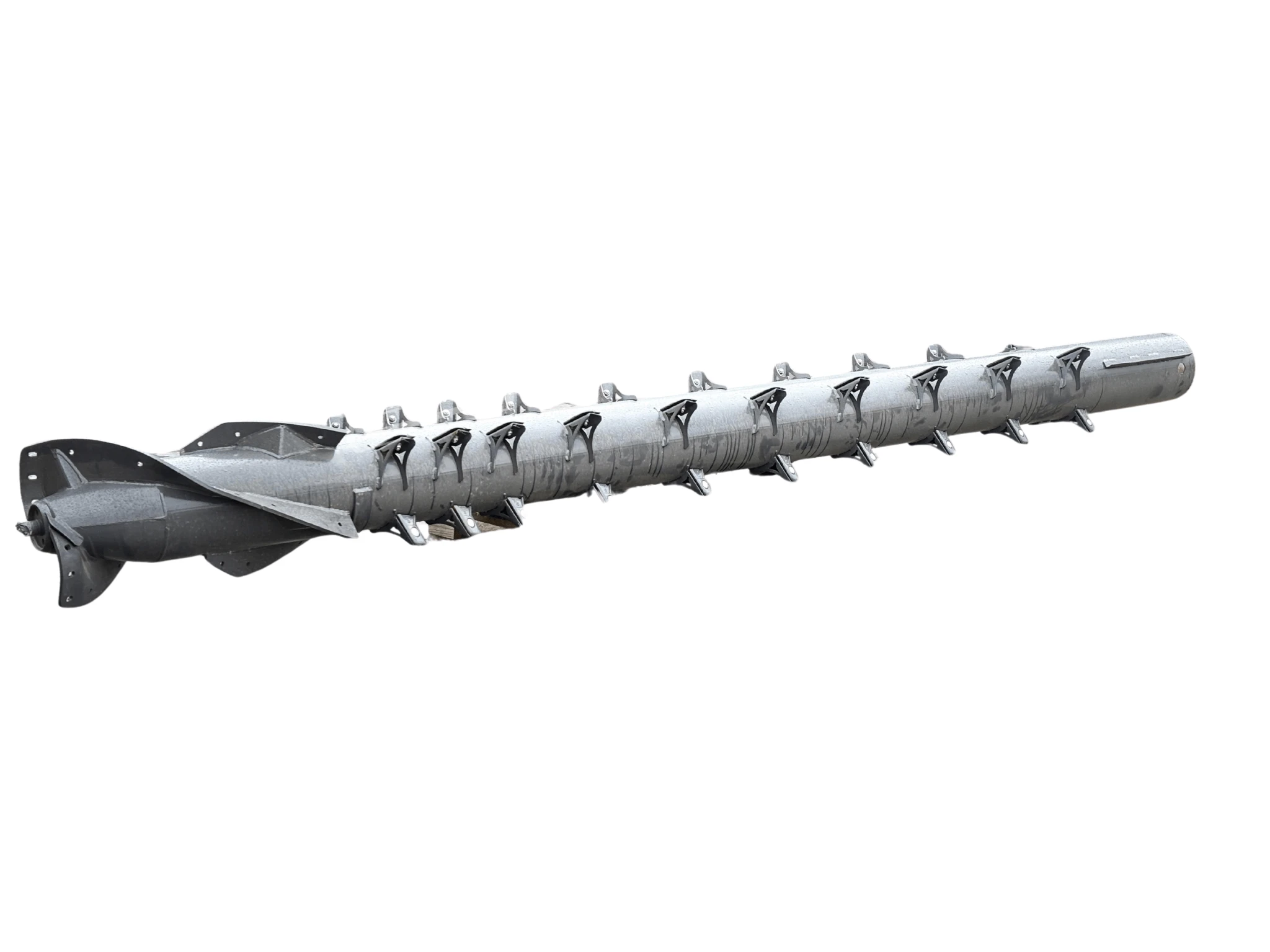

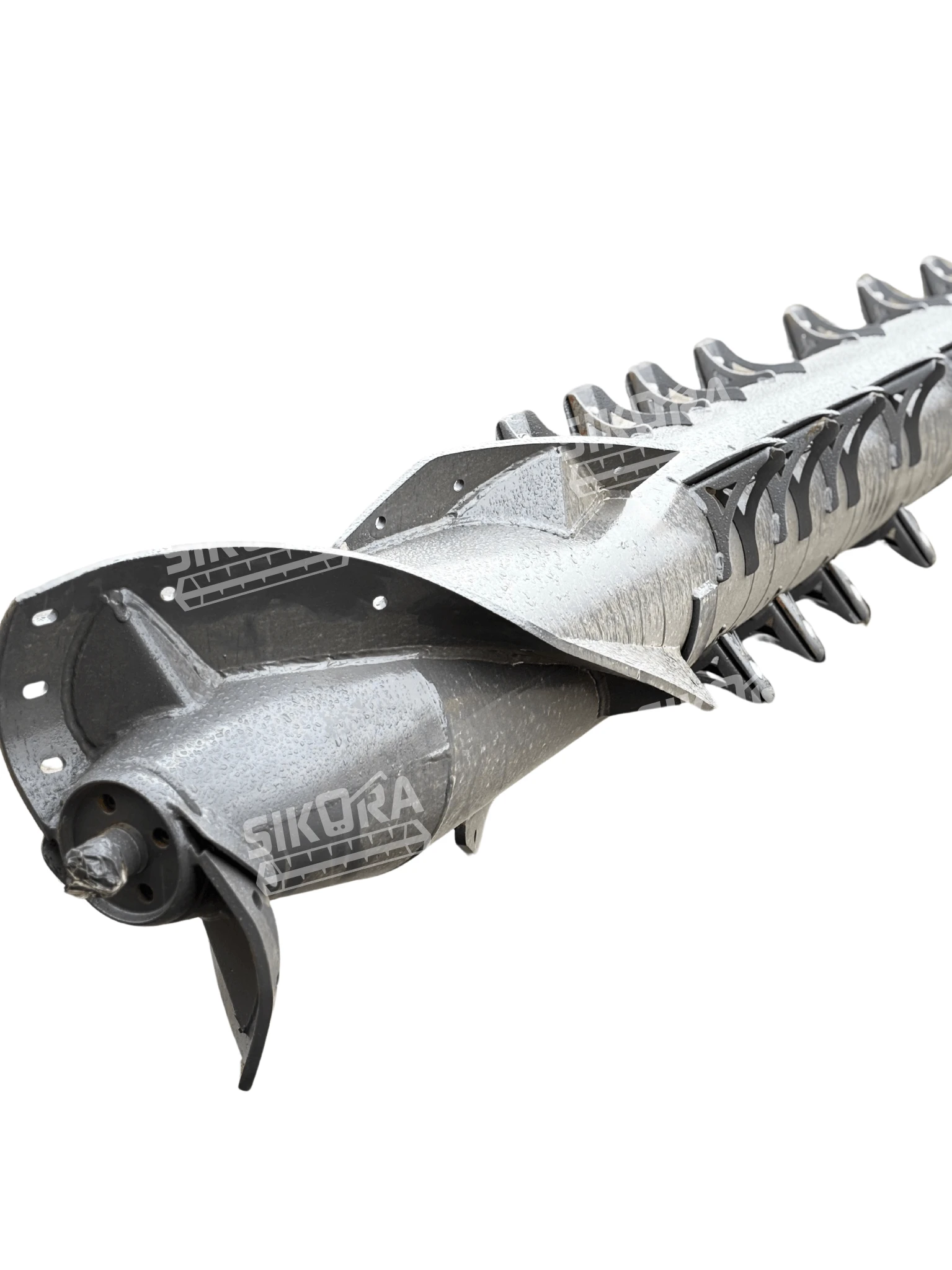

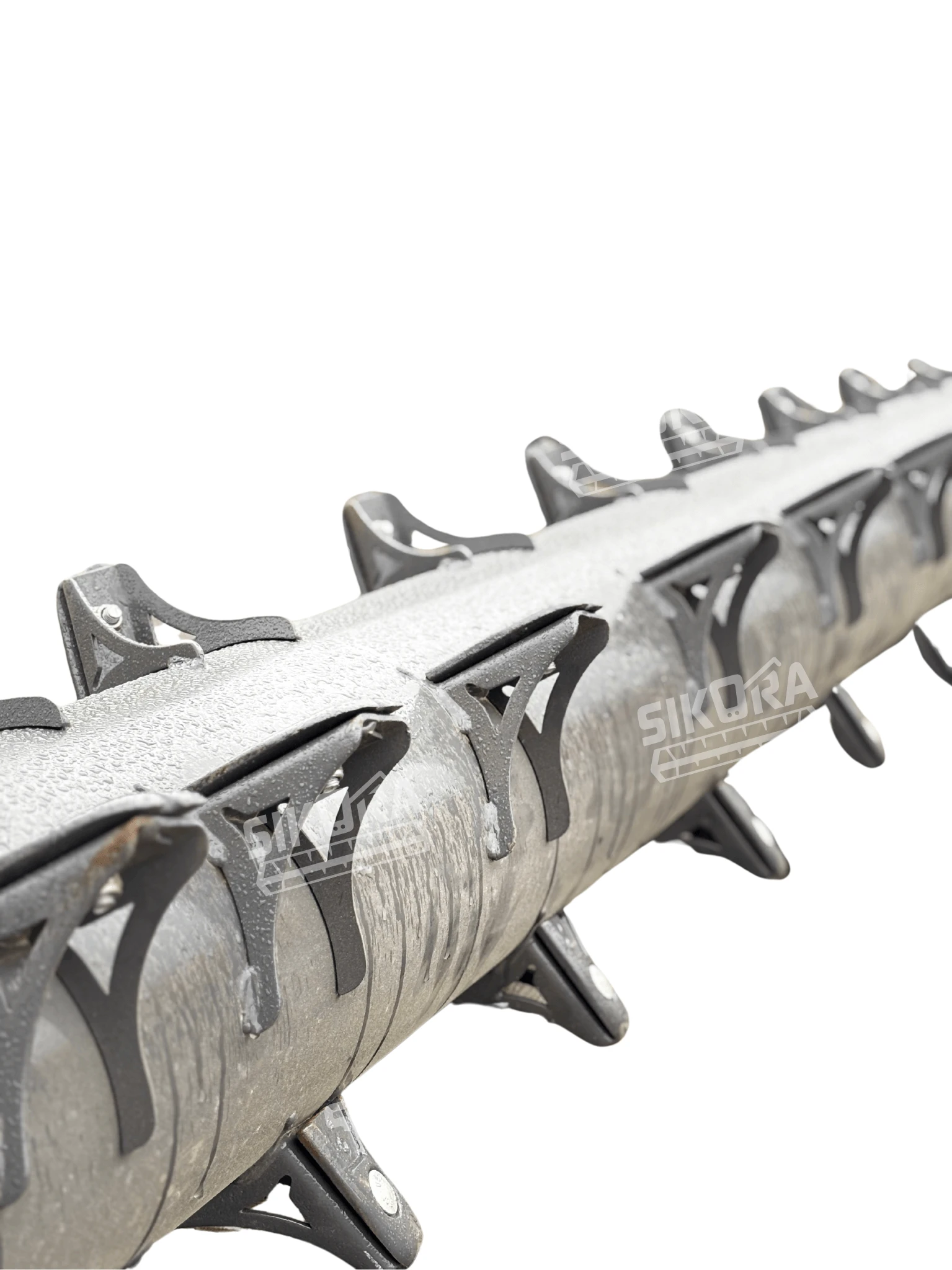

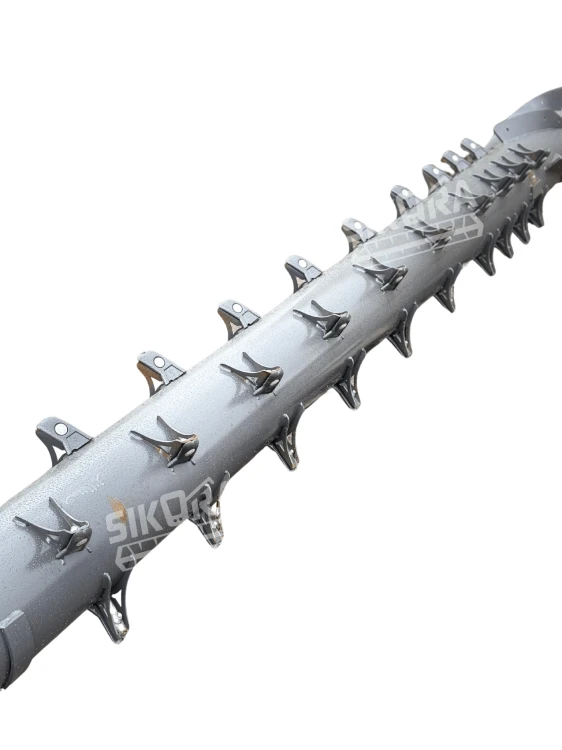

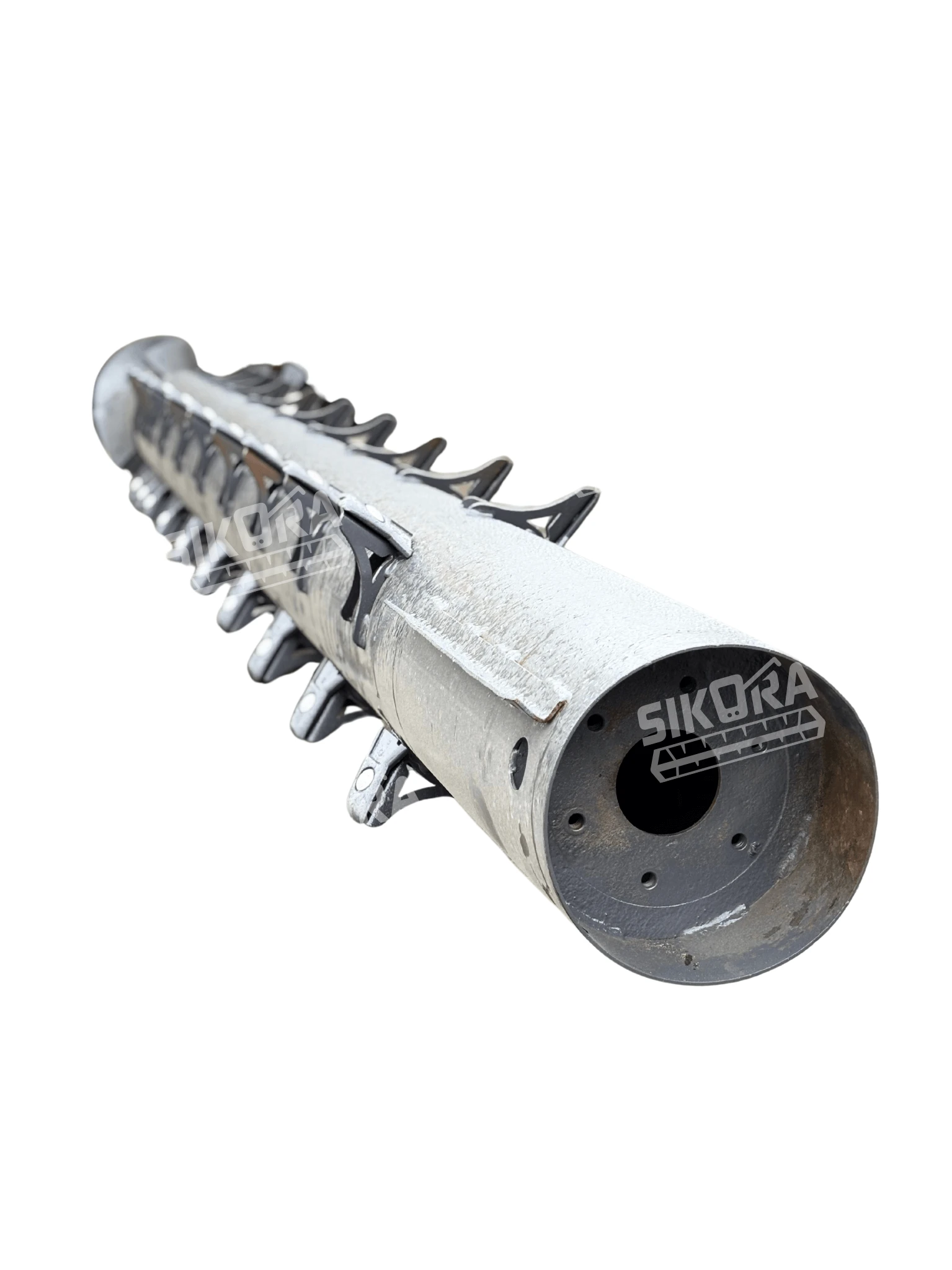

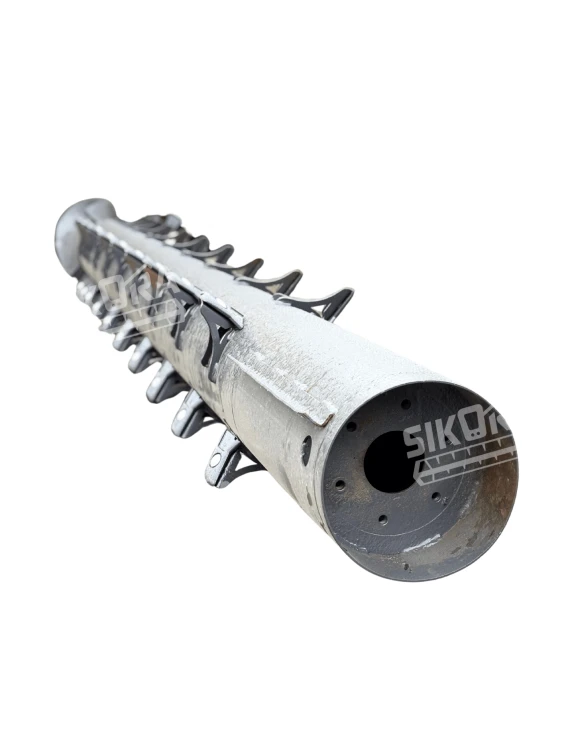

CLAAS combine harvester rotor part no. 00 0508 430 1 Agrosikora

Technical description of the separating rotor for the CLAAS combine

The separating rotor for the CLAAS combine, designated with part number 00 0508 430 1, is one of the key elements of the threshing and separation system in CLAAS hybrid combines. Used in machines with APS HYBRID technology,the separating rotor for the CLAAS combineis responsible for the intensive separation of the remaining grain from the straw after passing through the threshing drum. Its cylindrical shape, high weight and rotational speed allow for the use of centrifugal force and friction to effectively clean the material. Made of abrasion-resistant materials, the rotor must withstand high loads and long-term operation in varying harvesting conditions.

Location of the rotor in the CLAAS combine separation system

The separating rotor for the CLAAS combineis located in the rear part of the machine's threshing unit, directly behind the threshing drum. In APS HYBRID systems, there are usually two rotors arranged parallel longitudinally to the machine axis.The separating rotor for the CLAAS combinetakes the straw from the beater and processes it in a dynamic rotational motion, separating the grain remains that were not threshed in the main drum. After passing through the rotor, the straw goes to the chopper or is laid in a swath. The placement of the rotors necessitates high resistance of components to overloads and ensures easy service access through the rear of the machine.

Application and functions of the CLAAS rotor

The separating rotor for the CLAAS combineplays a fundamental role in the final phase of the grain-from-straw separation process. It utilises centrifugal force and mechanical contact of the material with the drum surface to separate even the smallest amounts of grain remaining in the straw structure.The separating rotor for the CLAAS combinenot only improves separation quality but also transports straw to the rear of the machine, enabling its further processing. The use of this element in the HYBRID system significantly increases combine efficiency and reduces grain losses. Adjustable rotational speed allows the rotor's operation to be adapted to the type of crop and field conditions.

Compatibility of rotor 00 0508 430 1 with CLAAS combine models

The separating rotor for the CLAAS combinewith part number 00 0508 430 1 is designed for machines equipped with the APS HYBRID system, which combines a classic threshing drum with rotary separation. Compatibility includes numerous models ofCLAAS LEXION, including Lexion 480, Lexion 570, Lexion 580, Lexion 600 and many versions of the Lexion 700 series and newer, which utilise a twin-rotor system.The separating rotor for the CLAAS combineis a typical element of hybrid machines, distinguished by high throughput and separation efficiency. Due to the dimensions, mounting method and working profile, we recommend that you contact us.
