CLAAS Feed Drum part no. 00 0777 625 1 and 00 2984 092 0 Agrosikora

Technical description of the feed drum for CLAAS combine harvesters

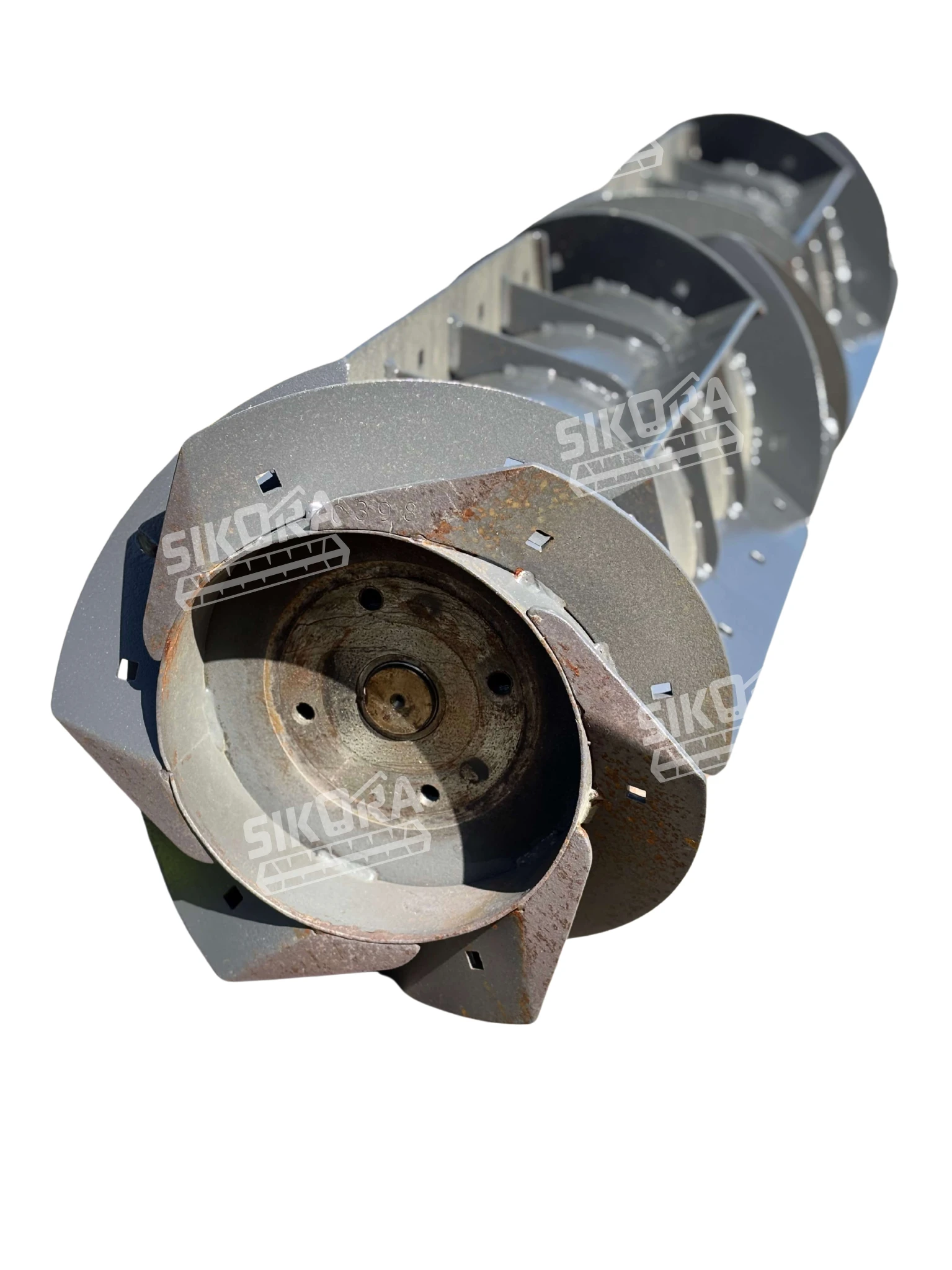

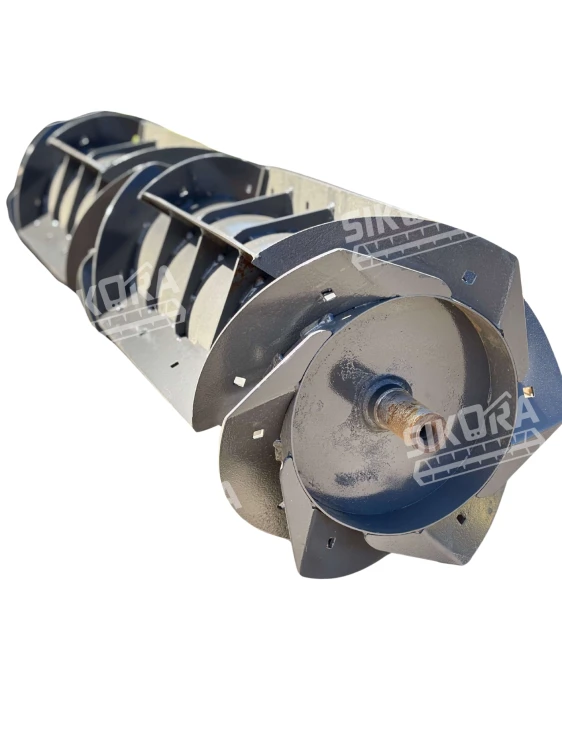

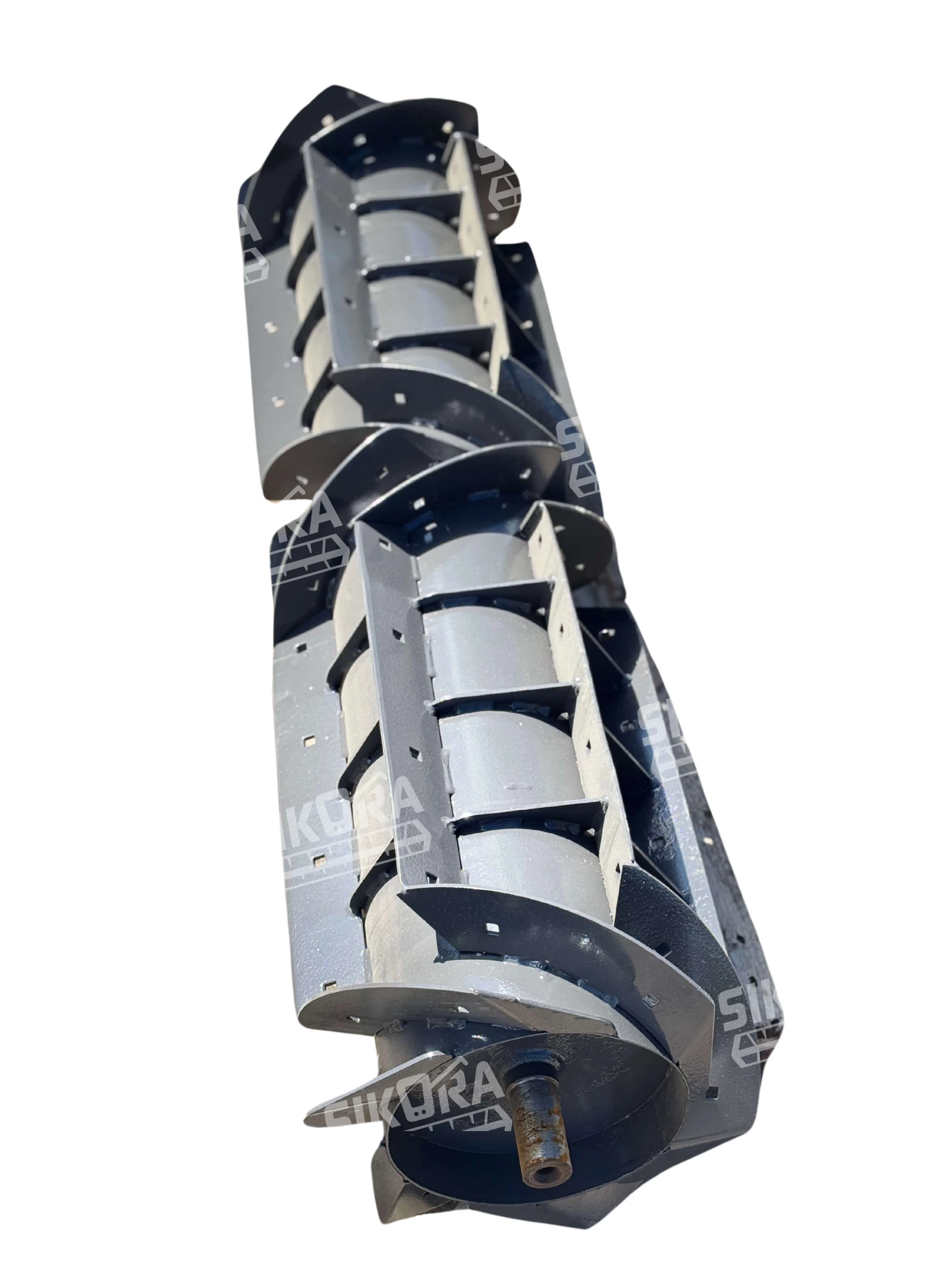

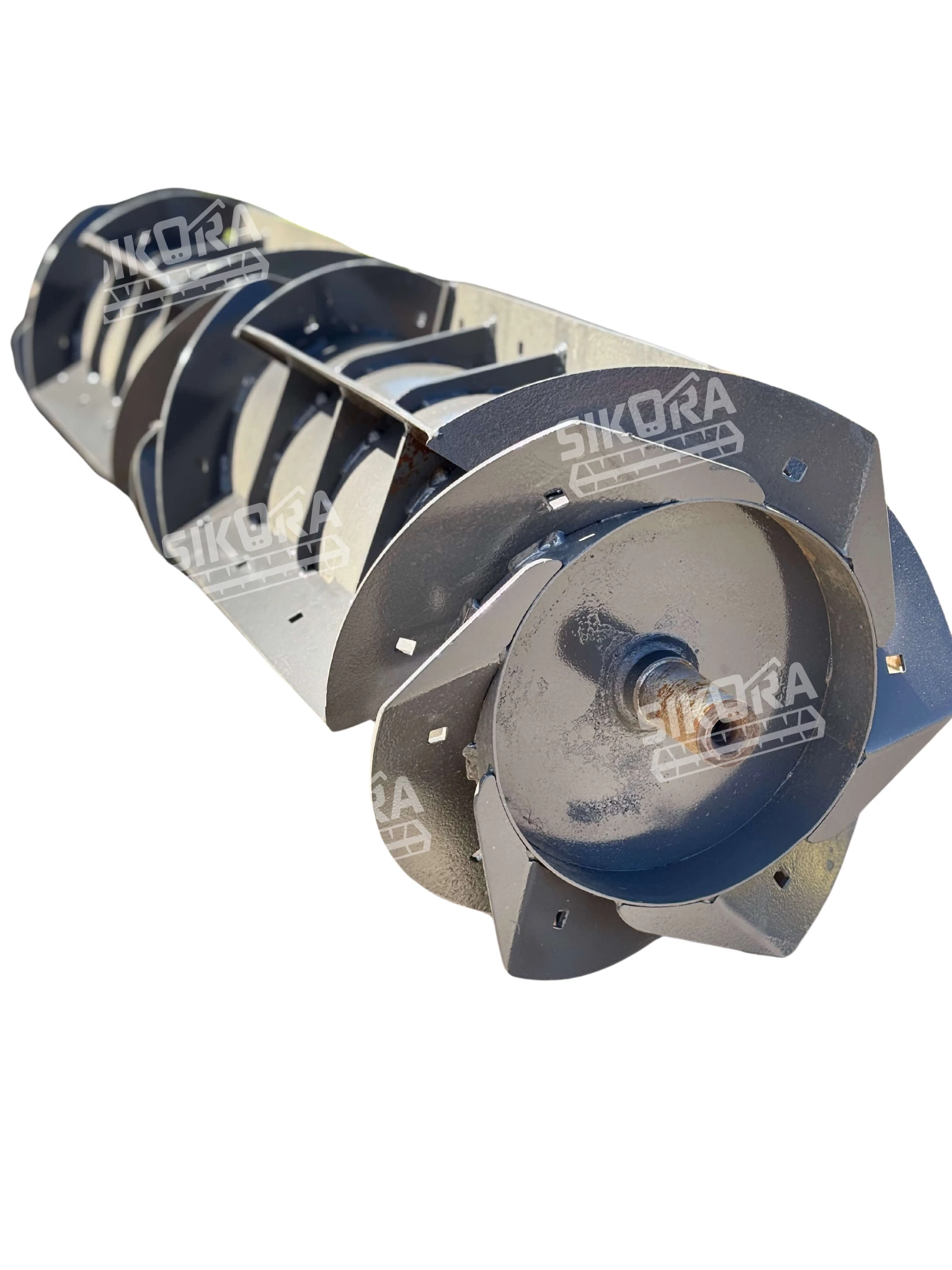

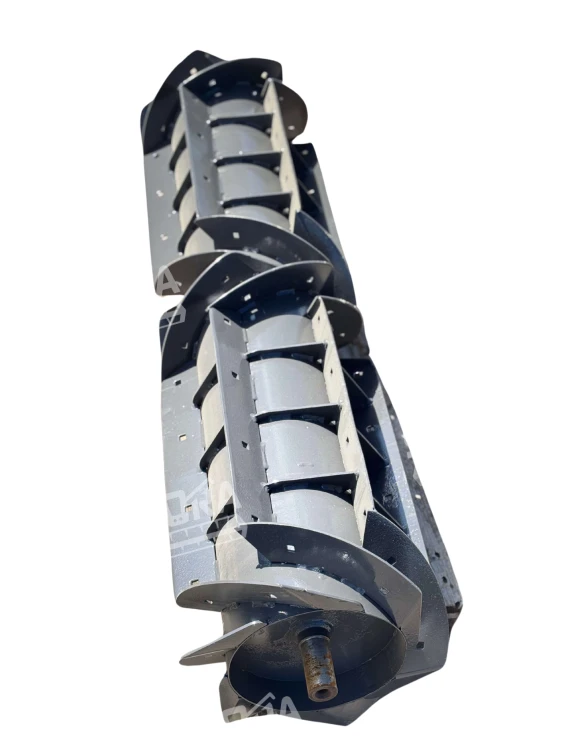

Feed drum for CLAAS combine harvester, also known as an accelerator drum or pre-threshing drum, is the component responsible for taking the crop mass from the feeder house and transferring it to the main threshing drum. Models with part numbers 00 0777 625 1 and 00 2984 092 0 perform the same function, although they may differ in design due to their use in different generations of machines.Feed drum for CLAAS combine harvesterensures a smooth material transition, reducing load spikes and improving the overall quality of the threshing system's operation. Its design may include bars or fingers that help loosen the mass before its actual processing.

Location of the feed drum in a CLAAS machine

Feed drum for CLAAS combine harvesteris located directly behind the feeder house and before the main threshing drum. It constitutes the first active element of the threshing process in machines equipped with the APS (Accelerated Pre-Separation) system. Centrally located in the flow channel,the CLAAS combine harvester feed drumbegins the process of separating and accelerating the mass, preparing it for further processing on the main drum and concave. Its location ensures even material distribution and enables an effective transition through subsequent separation stages.

Application and functions of the CLAAS feed drum

The main objective achieved bythe CLAAS combine harvester feed drum, is to optimise the crop flow in the initial stage of threshing. It accelerates the movement of material from the feeder house and directs it in an orderly manner to the threshing drum.Feed drum for CLAAS combine harvesteris responsible for even distribution of the mass across the entire width of the machine, which prevents overloading and improves threshing efficiency. Additional functions include pre-loosening of the straw and protecting the main drum against sudden load changes. A well-designed feed drum also contributes to reducing grain losses and overall harvest quality.

Compatibility of drums 00 0777 625 1 and 00 2984 092 0 with CLAAS models

Feed drum for CLAAS combine harvesterwith part numbers 00 0777 625 1 and 00 2984 092 0 is used in many machine models of this brand. These components are used in theCLAAS LEXIONseries, especially in the 400, 500, 600, 700 and 800 versions, which utilise the APS system.Feed drum for CLAAS combine harvestermay also be present in selectedCLAAS TUCANOmodels (e.g. 300, 400, 500) that use similar pre-threshing solutions. The differences between these two numbers may relate to the technical version, number of bars, geometry or specific adaptations to a given machine year. To precisely select the correct variant, we recommend contacting us.
