Discharge blade for CLAAS chaff spreader part no. 00 0731 369 1 Agrosikora

Discharge blade for CLAAS combine – a key element of the crop residue spreading system

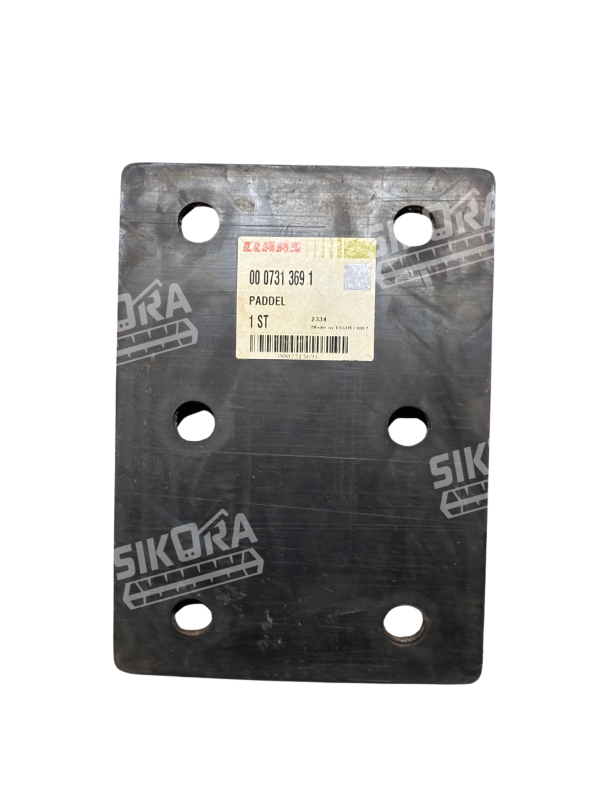

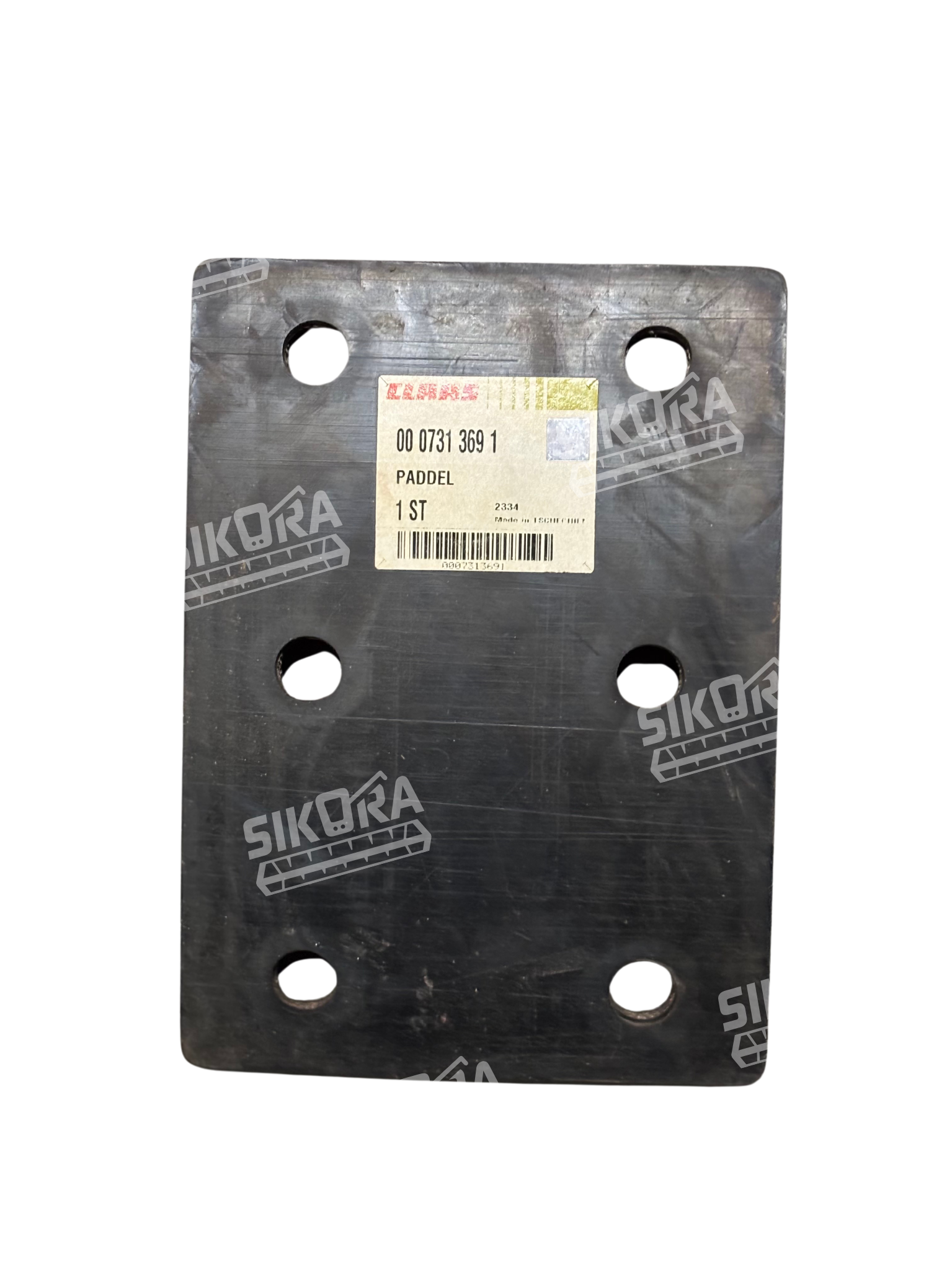

Discharge blade for CLAAS combinewith catalogue number 00 0731 369 1 is a working element which, rotating at high speed, is used to discharge and evenly spread crop residues, such as straw and chaff, outside the machine or to specific locations in the field. It is made of durable materials resistant to abrasion and impact, allowing it to withstand intensive contact with material during field work.

Location of the discharge blade in a CLAAS combine

Discharge blade for CLAAS combineis located at the rear of the combine, as part of the crop residue management system. It is most often mounted in the chaff spreader, where it is responsible for ejecting the chaff separated from the grain in the cleaning system. In combines equipped with a straw chopper, the blades may be part of the chopper rotor, which simultaneously chops and spreads the straw. In machines without a straw chopper, they function as ejectors that direct the straw into a swath on the field. The specific location and design of the blades depend on the straw and chaff management system used in the specific combine model.

Application and key functions of the discharge blade in a CLAAS combine

The main taskof the discharge blade for a CLAAS combineis the even distribution of crop residues on the field, which promotes optimal conditions for further cultivation work, soil fertilisation and improves the aesthetics of the field. It effectively spreads straw and chaff over the working width of the header, while preventing blockages in the rear part of the machine by efficiently removing a large mass of material. In many systems, it is possible to adjust the inclination angle and rotational speed of the blades, allowing for precise control of the range and spreading pattern. Thanks to the use of high-grade steel and hardening, the blades are resistant to intense abrasion and impact, ensuring their long service life and reliability. Even distribution of crop residues facilitates their decomposition and preparation of the field for the next crop.

Compatibility of the discharge blade with CLAAS combine models

Discharge blade for CLAAS combinewith catalogue number 00 0731 369 1 is used in a wide range of CLAAS combine models equipped with crop residue management systems. It is used, among others, in the following series:LEXION(500, 600, 700, 800 and newer),TUCANO(400, 500), and also in newer modelsTRIONandAVERO. Due to diverse applications, we recommend you contact us.
