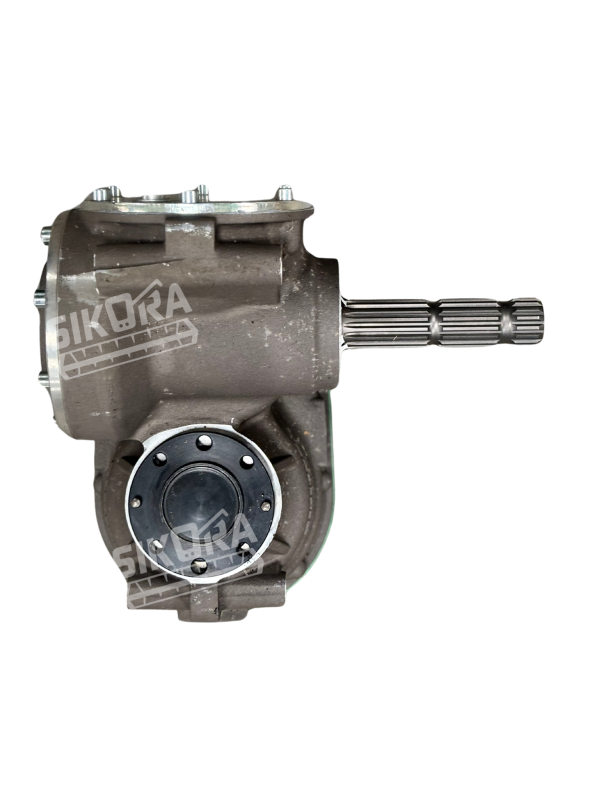

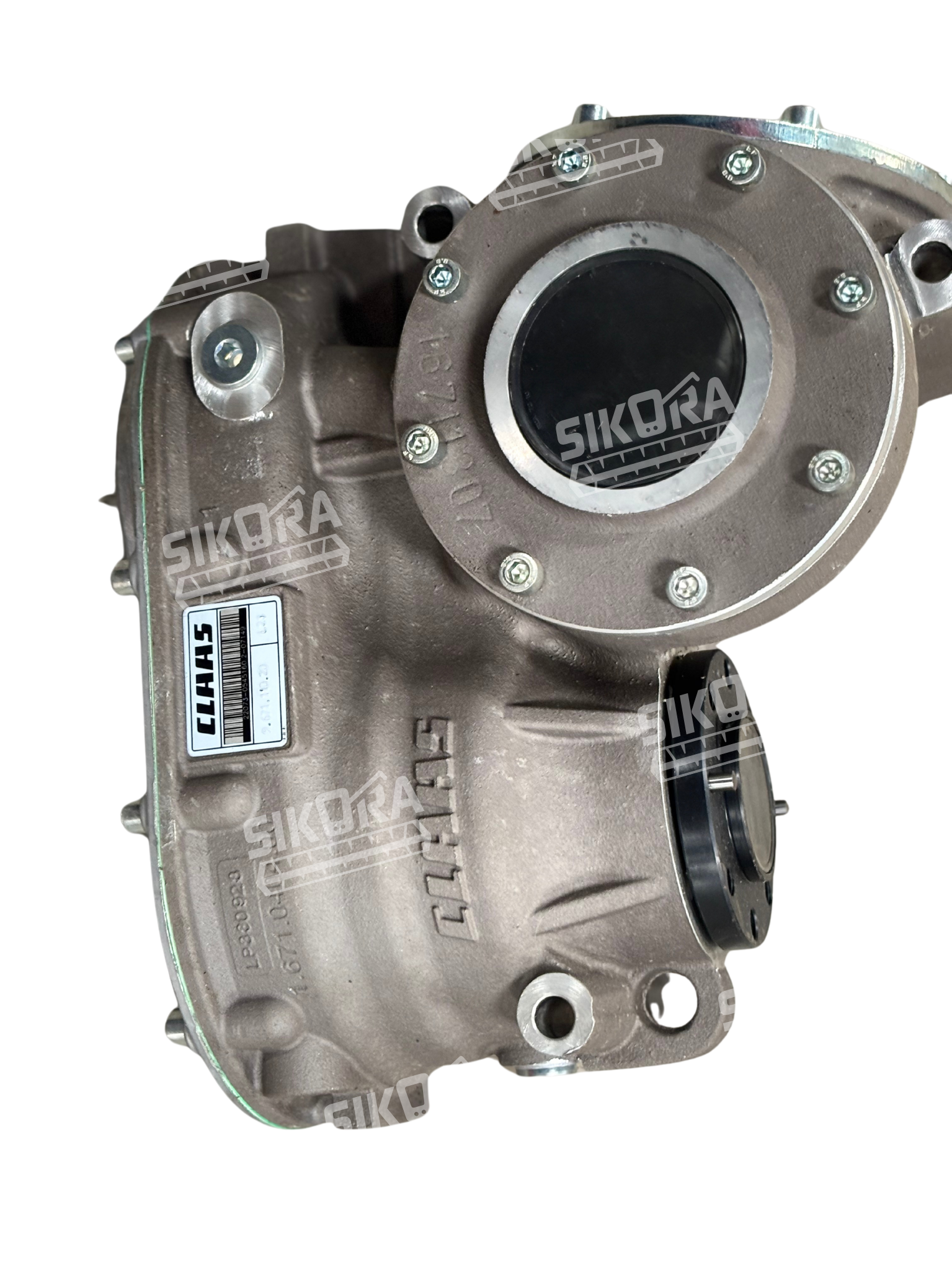

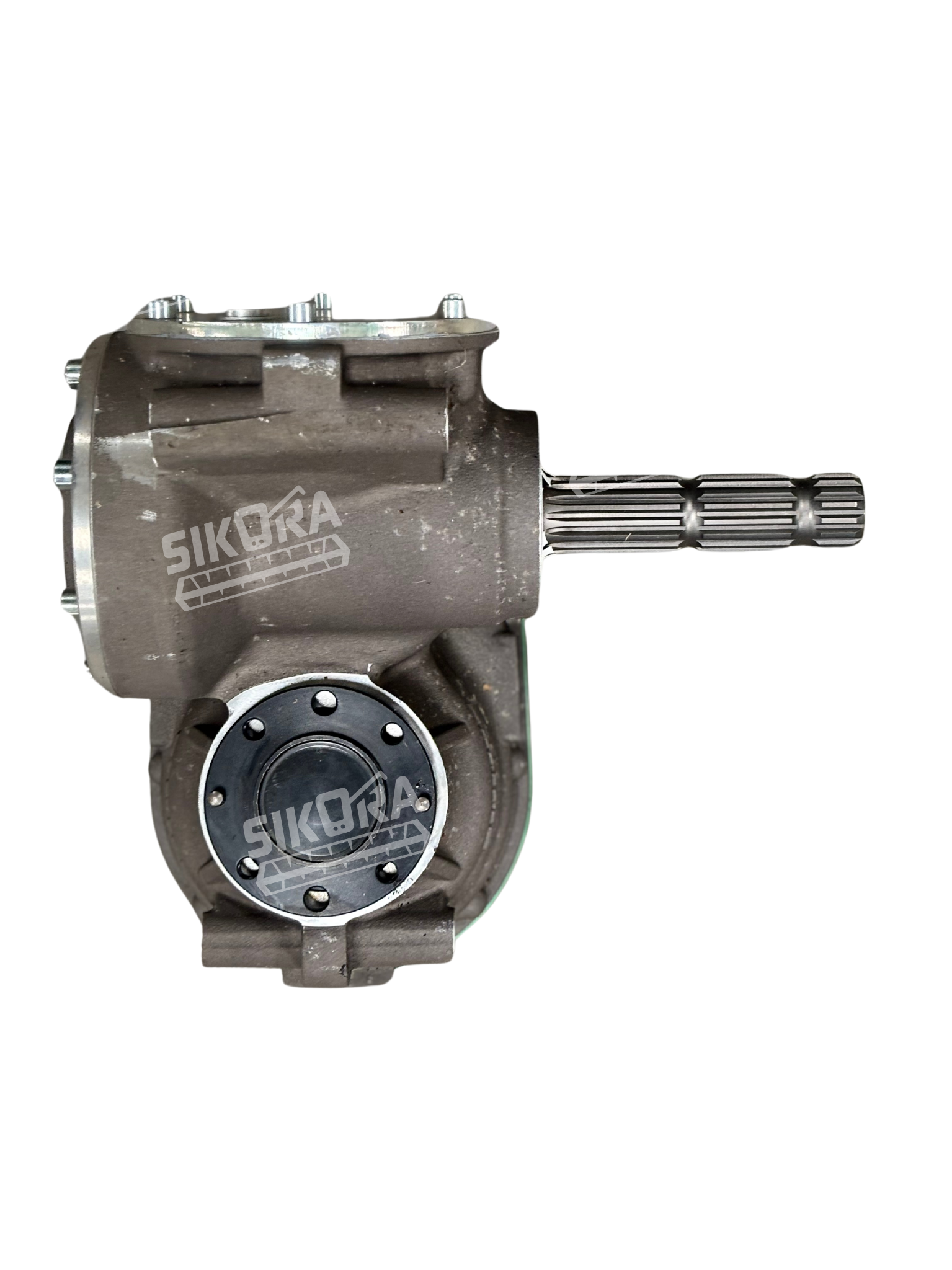

Angle Gearbox for CLAAS Corn Header part no. 0005451611 Agrosikora

Technical specification of the angle gearbox for CLAAS combine harvester

Angle gearbox for CLAAS combine harvesteris an essential mechanical element that allows for the transfer of torque and power between shafts set at an angle, usually 90 degrees. It uses bevel gears, which allow for efficient and reliable drive transmission when changing the direction of rotation.Angle gearbox for CLAAS combine harvesteris indispensable where the drive system must change the plane of operation while a compact design is key. Part number 00 0545 161 1 identifies the gearbox model used in various CLAAS combine harvester designs.

Typical locations of the angle gearbox in CLAAS combine harvesters

Angle gearbox for CLAAS combine harvesteris mounted in locations requiring a change in drive direction. It is most commonly used in the header drive, where it connects the combine's PTO shaft with cutting mechanisms such as the knife or reel, changing the drive plane. Inside the combine, the angle gearbox can drive the threshing drum, chaff spreader, fans, and grain and tailings transport systems. It can also be found in drive systems as part of drive axles or final drives. The specific location depends on the combine model and its configuration.

Application and key functions of the angle gearbox in agricultural machinery

The main taskof the angle gearbox for CLAAS combine harvesteris to efficiently transfer mechanical power when changing the direction of the drive shafts.Angle gearbox for CLAAS combine harvesterenables the transmission of torque between shafts positioned at an angle, ensuring precision and durability of operation. Additionally, the gearbox allows for changes in rotational speed and torque through the use of gears with different parameters. Its compact design allows for optimal space utilisation within the machine. It is made of hardened steel, which guarantees resistance to high loads and a long service life under intensive operating conditions.

CLAAS combine models compatible with angle gearbox 00 0545 161 1

Angle gearbox for CLAAS combine harvesterwith part number 00 0545 161 1 is used in many CLAAS combine models. It is found in theLEXIONseries (400, 500, 600, 700), where it serves to change the drive direction in the header and internal mechanisms of the machine. This gearbox is also used in some models of theTUCANOseries (300, 400, 500) and in older models from theMEGAandMEDIONseries. Due to its diverse applications, we recommend you contact us.
