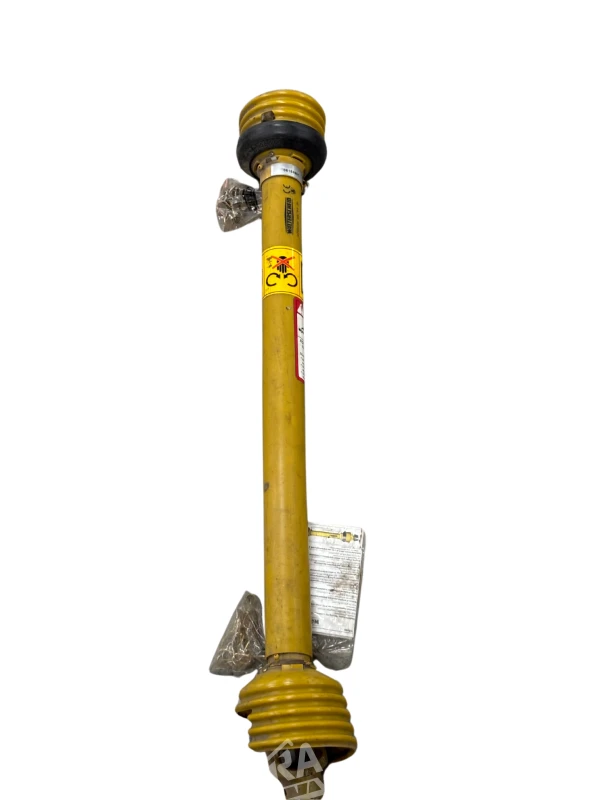

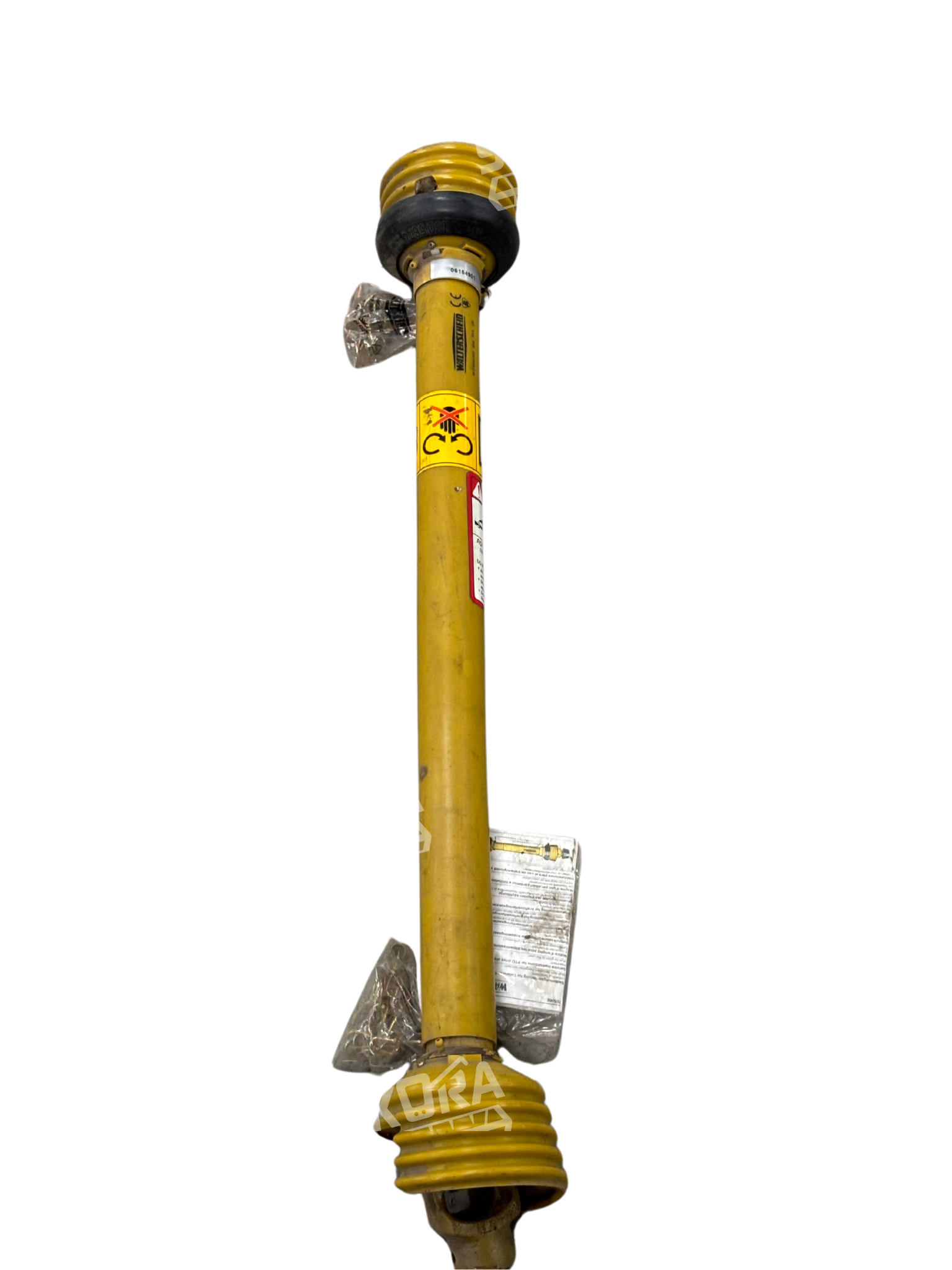

Joint Shaft Cat. No. 00 0615 490 1 Agrosikora

Characteristics of the joint shaft for the CLAAS combine harvester

The joint shaft for the CLAAS combine harvesteris a key component of the flexible drive transmission system, enabling the transfer of torque between two shafts with non-axial positioning. Identified by catalogue number 00 0615 490 1,the joint shaft for the CLAAS combine harvesteris constructed of universal joints and a telescopic segment that allows for the compensation of length changes. Designed to work in demanding field conditions, it is characterised by high resistance to dynamic loads, variable setting angles, and vibrations.

Location of the joint shaft in the CLAAS machine system

The joint shaft for the CLAAS combine harvesteris used in many places on the machine where flexible drive transmission is required at a changing angle or distance between elements. It can be mounted between the main drive of the combine harvester and theheader, allowing it to be raised and work on uneven terrain. It is also frequently found in attachment drives (e.g. for maize), the straw chopper, as well as in internal systems connecting gearboxes or working mechanisms such as the thresher or chaff spreader.The joint shaft for the CLAAS combine harvestercompensates for the movements of the units and maintains the continuity of power transmission.

Application and functions of the CLAAS joint shaft

The main task performed bythe joint shaft for the CLAAS combine harvesteris the effective transmission of drive between shafts whose mutual positions change dynamically. Cardan joints enable angular compensation, while the telescopic segment adjusts the length of the system during operation.The joint shaft for the CLAAS combine harvesteralso absorbs vibrations and shocks, which contributes to the protection of other drive system components and ensures the smooth operation of the machine. Thanks to its robust construction, it can work under heavy loads for many hours without risk of failure.

CLAAS combine harvester models compatible with shaft 00 0615 490 1

Catalogue number 00 0615 490 1 is assigned tothe joint shaft for the CLAAS combine harvester, used in many models of this brand. This element is used in a wide range of machines from theLEXIONseries (models 400, 500, 600, 700), as well as in selectedTUCANOunits (300, 400, 500) and certain versions ofMEGAandMEDION. Depending on the drive system configuration, this shaft can be used to drive the header, chopper, or other components. Due to the diverse applications, we recommend that you contact us.
