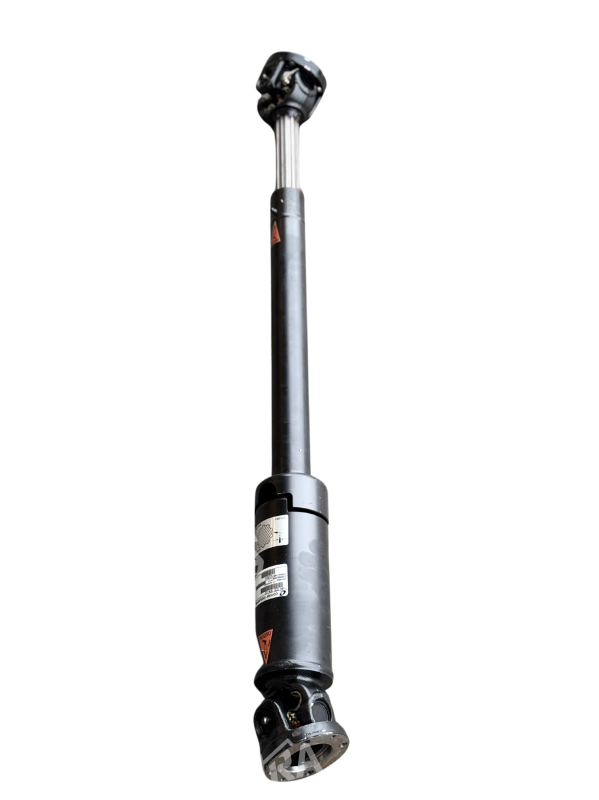

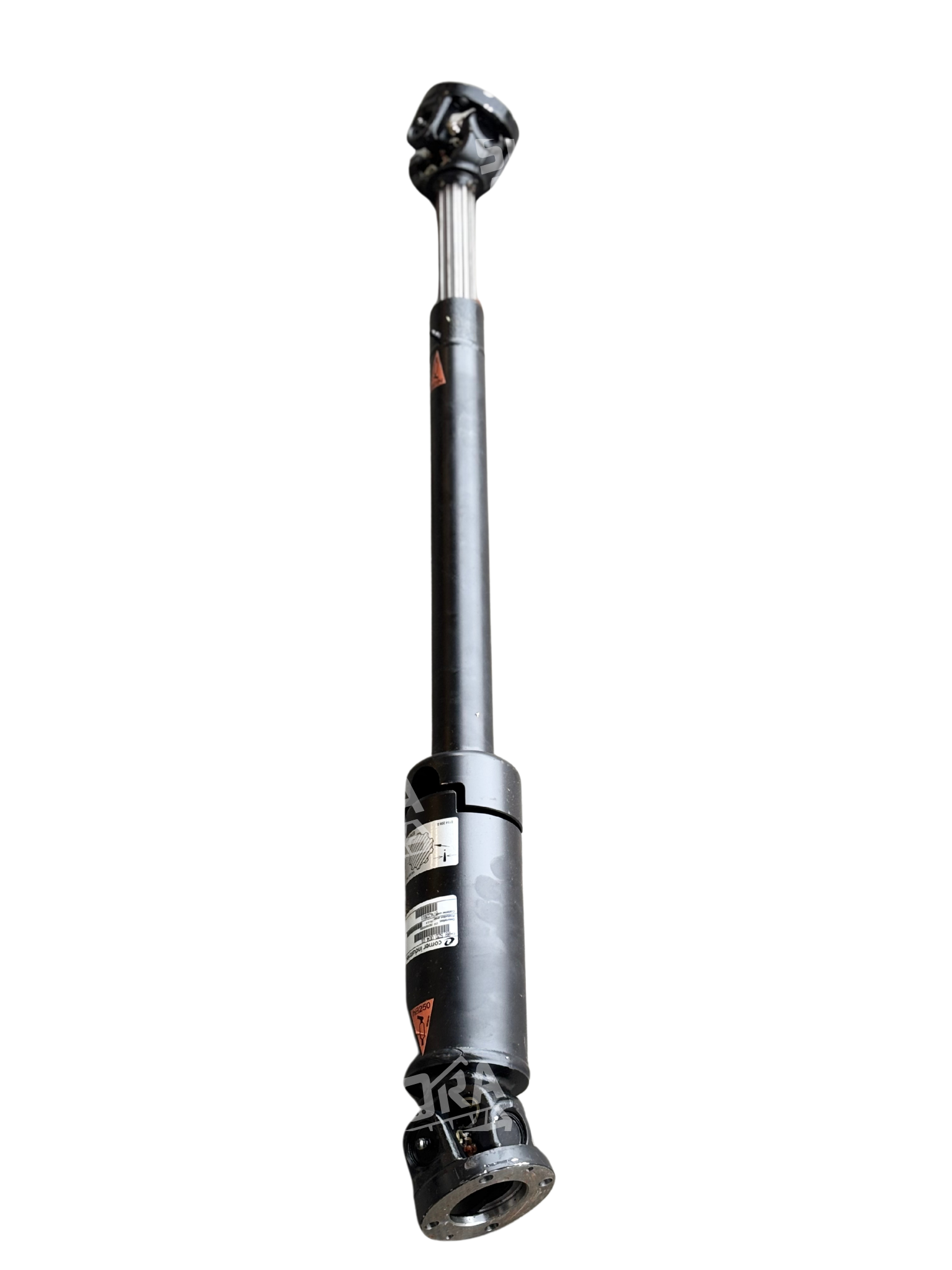

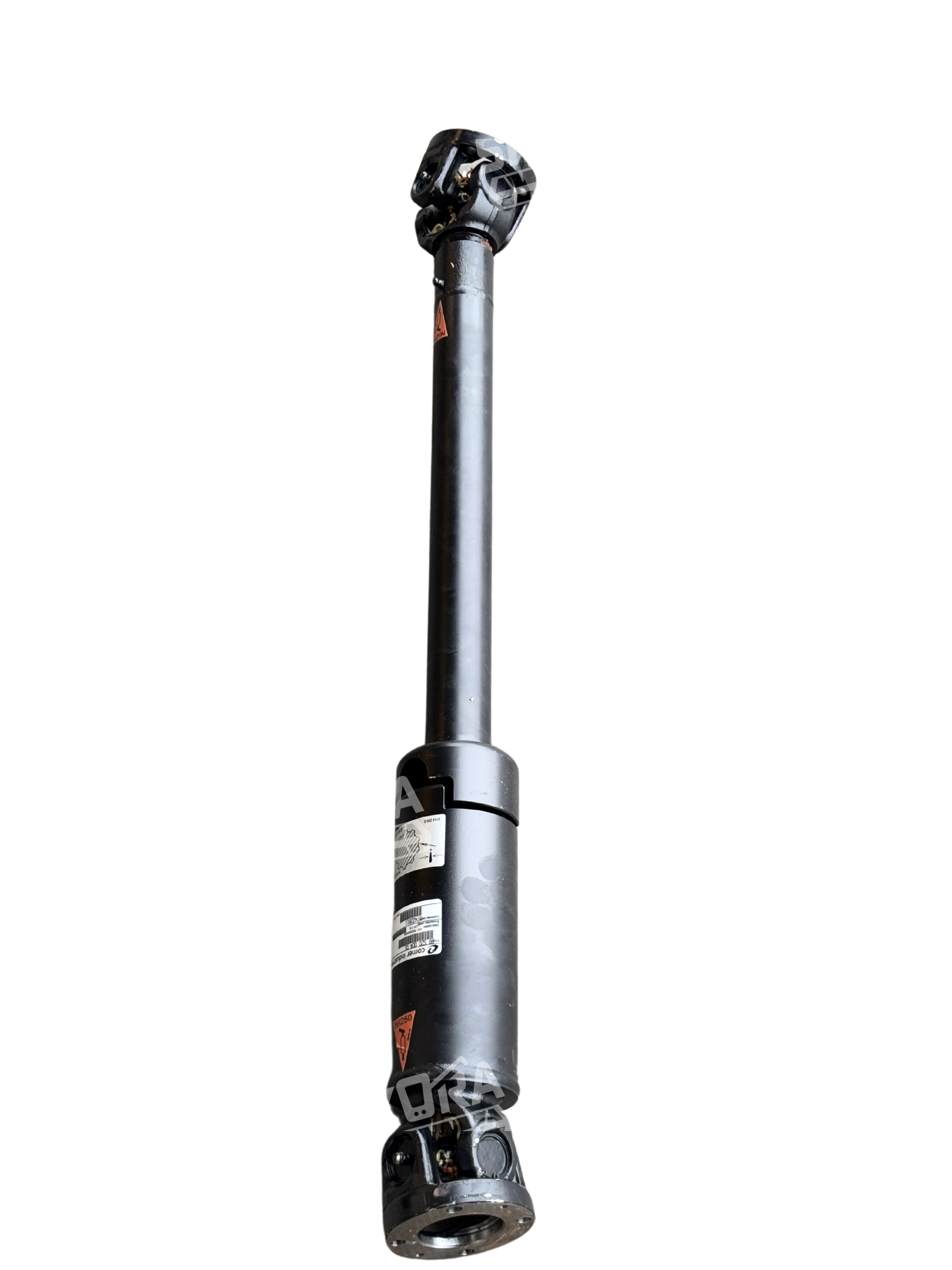

CLAAS drive shaft for combine harvesters, cat. no. 00 0742 281 1 Agrosikora

Characteristics of the drive shaft for the CLAAS combine harvester

The drive shaft for the CLAAS combine harvesteris an essential element of the power transmission system, allowing torque to be transmitted between components with a variable rotation axis angle. Catalogue numbers 00 0742 281 1 and 00 0545 165 1 refer to thedrive shaft for the CLAAS combine harvester, where the former likely replaces the latter as a newer or updated variant. The shaft design is based on universal joints and a telescopic segment, which allows for the compensation of changes in length and operating angle between the shafts. This component has been designed for operation under high dynamic loads and varying geometric layouts of the drive system.

Location of the drive shaft in a CLAAS machine

The drive shaft for the CLAAS combine harvesteris used in many areas of the machine where flexible and reliable power transmission is required. Typical locations include the connection of the combine drive to theheader, enabling it to be raised and operated on uneven terrain. It can also be used in systems driving attachments (e.g., for maize) and in internal mechanisms where power is transmitted between non-axially positioned components, such as in the thresher or chaff cutter.The drive shaft for the CLAAS combine harvesterenables movement compensation and adaptation to the variable working position of the driven units.

Functions and application of the CLAAS drive shaft

The main task performed by thedrive shaft for the CLAAS combine harvesteris the transmission of torque under conditions of varying angle and length between the connected shafts. Universal joints allow for angular compensation, and the telescopic design allows for length adjustment, which is essential when working on uneven ground or during the movement of attachments.The drive shaft for the CLAAS combine harvesteralso supports the damping of vibrations and dynamic overloads, which affects the durability of the entire drive system and the safety of the machine's operation. Its reliability is crucial for the continuity of work during the harvest season.

CLAAS combine harvester models compatible with shaft 00 0742 281 1 / 00 0545 165 1

Catalogue numbers 00 0742 281 1 and 00 0545 165 1 relate to thedrive shaft for the CLAAS combine harvester, used in a wide range of machine models from this brand. This component is fitted in many combines from theLEXIONseries (400, 500, 600, 700), depending on the drive configuration and the attachment used.The drive shaft for the CLAAS combine harvesteris also found inTUCANOmodels (300, 400, 500) and in certain units from theMEGAandMEDIONseries. Due to potential differences between equipment versions and catalogue updates, we recommend contacting us.
