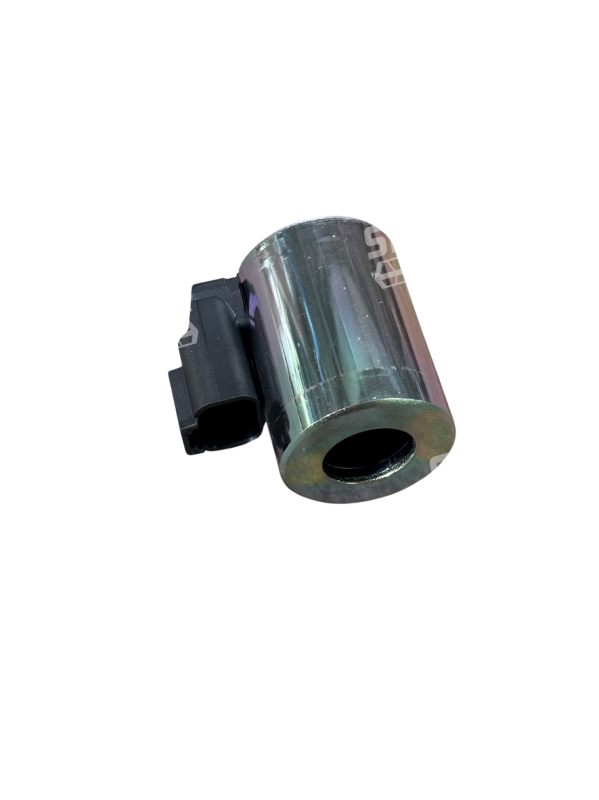

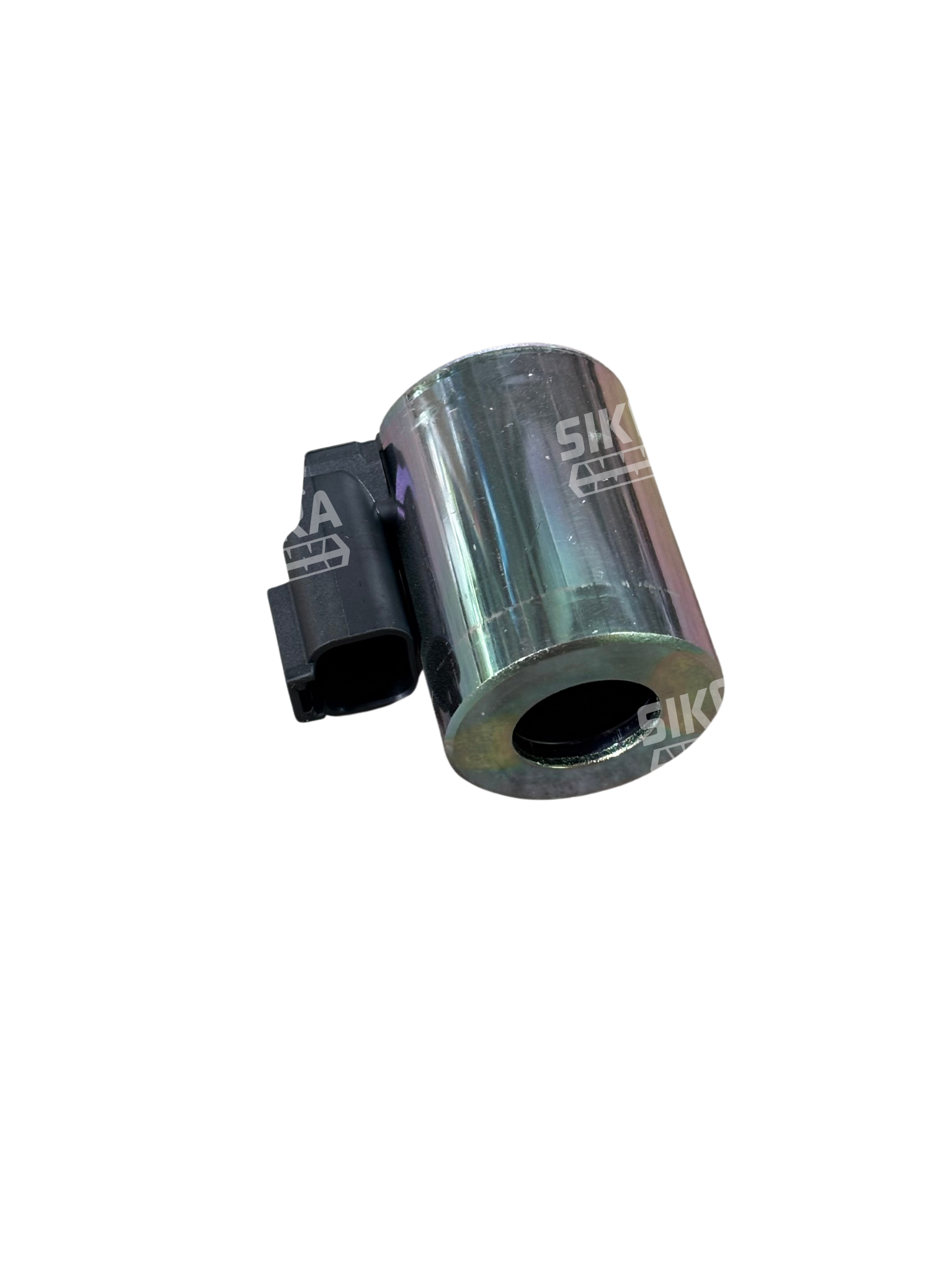

CLAAS Transmission Magnet Coil cat. no. 00 0056 431 0 Agrosikora

Magnet coil for CLAAS control systems

CLAAS magnet coil(cat. no.00 0056 431 0) is anelectromechanical component, which converts an electrical signal into mechanical action. It is a fundamental element of asolenoid valveorelectromagnetic clutchin a combine harvester. It works by generating a magnetic field that moves the coil core and triggers the desired effect – e.g. opening a hydraulic valve or engaging a drive.

Where the magnet coil is installed in a combine harvester

The CLAAS solenoid coilis located whereverelectrical control of mechanical movementis essential. Typical installation locations include:

• Hydraulic valves– e.g. for lifting the header, controlling the discharge pipe, or the threshing drum speed.
• Electromagnetic clutches– activating straw chopper drives or other components.
• Interlock and safety systems– e.g. transport locks, access interlocks.
• Fuel injection systems– where fast pulses are required for injection control.

Installationof the CLAAS coildepends on its function in a given model – it is often a replaceable element in the valve block or remote control system.

Functions and operation of the solenoid coil

The CLAAS solenoid coilis crucial for process automation. By receiving an electrical signal from the ECU or control panel, it generates the magnetic field required to perform a specific movement.

Key functions:

• Activating hydraulic functions– e.g. opening/closing flow valves.
• Remote control of drives– from the operator's position or the automation system.
• Precise flow control– thanks to rapid response to electrical signals.
• Safe operation in harsh conditions– high resistance to dust, vibration, and temperature changes.

Application in CLAAS combine harvesters

Solenoid coil 00 0056 431 0is used in many models of CLAAS combine harvesters, including:

• CLAAS LEXION– 400–700 series models, in hydraulic valve systems, straw choppers, and other electrically controlled components.
• CLAAS TUCANO– typically in the 300, 400, 500 series.
• CLAAS MEGA, MEDION, DOMINATOR– in older designs, if electronic valves or drives are provided.

Due to the variety of applications, we recommend that you contact us.
