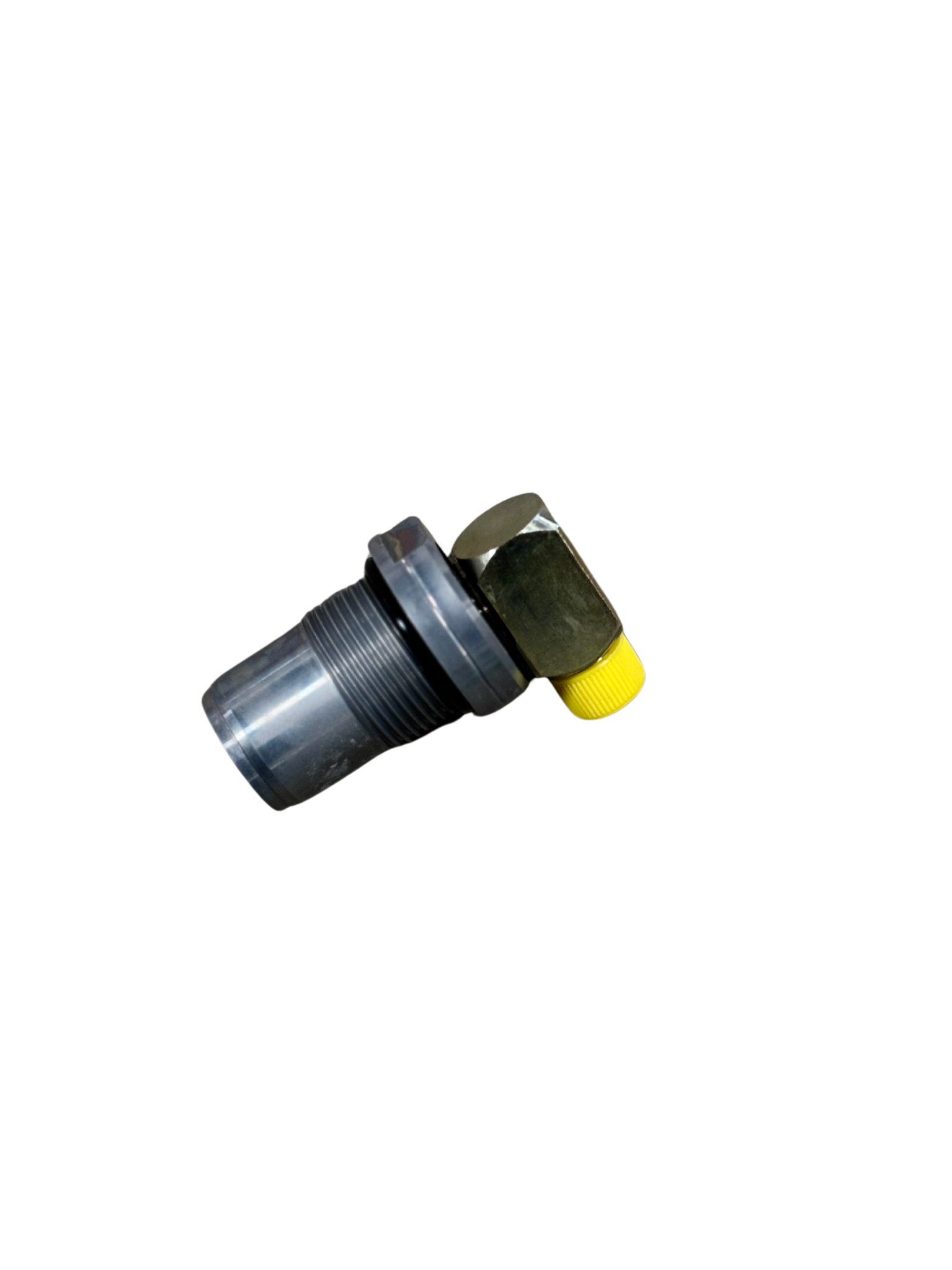

CLAAS Rotary Joint part no. 00 0109 714 3 Agrosikora

Hydraulic rotary joint for CLAAS combine harvester

Hydraulic rotary joint for CLAAS combine harvester(part no.00 0109 714 3) is a specialised component designed to transfer media (hydraulic oil, coolant, or electrical signal) betweenstationary and rotating elementsof the machine. The design of the connection allows for a safe and durable connection of circuits in places where rotational movement prevents the use of traditional hoses.CLAAS rotary jointensures uninterrupted operation of mechanisms rotating in full range of motion.

Location of the rotary joint in a CLAAS combine harvester

CLAAS rotary jointis used in places where there is continuous rotation of elements requiring media supply. Typical locations include:

• Grain discharge pipe– the most common application. Rotation of the pipe around its axis requires the supply of hydraulic oil or electrical cables for sensors and lighting.
• Header rotating elements– e.g. on folding headers, where hydraulic elements must operate despite changes in position.
• Hydraulic systems with variable working angles– where classic hoses would be subject to excessive wear due to twisting.

The exact location depends on the machine model and the configuration of the specific component.

Application and functions of the CLAAS rotary joint

The main functionof the CLAAS hydraulic rotary jointis to ensure continuity of media flow during simultaneous rotation of the component. This enables a safe and durable connection of systems in places where rotation or a change in the angle of component position occurs.

Key functions:

• Transfer of fluids or signals– without interrupting system operation, regardless of the rotation angle.
• Free movement– allows rotation of components in full range without the risk of damaging the hoses.
• Tightness– prevents liquid leaks even during dynamic movements of the machine.
• Wear resistance– adapted to work in conditions of dust, high temperatures, and vibrations.

Application of the rotary joint in CLAAS models

Part number00 0109 714 3is assigned tothe rotary joint, which is found in manyCLAAS combine harvester models. Most commonly used in components with rotational movement, specifically:

• CLAAS LEXION– 400, 500, 600, 700 series models, especially in the grain discharge pipe.
• CLAAS TUCANO– selected models from the 300, 400, 500 series.
• CLAAS MEGA / MEDION– application possible in older configurations, depending on the hydraulic equipment.

Due to various applications, we recommend that you contact us.
