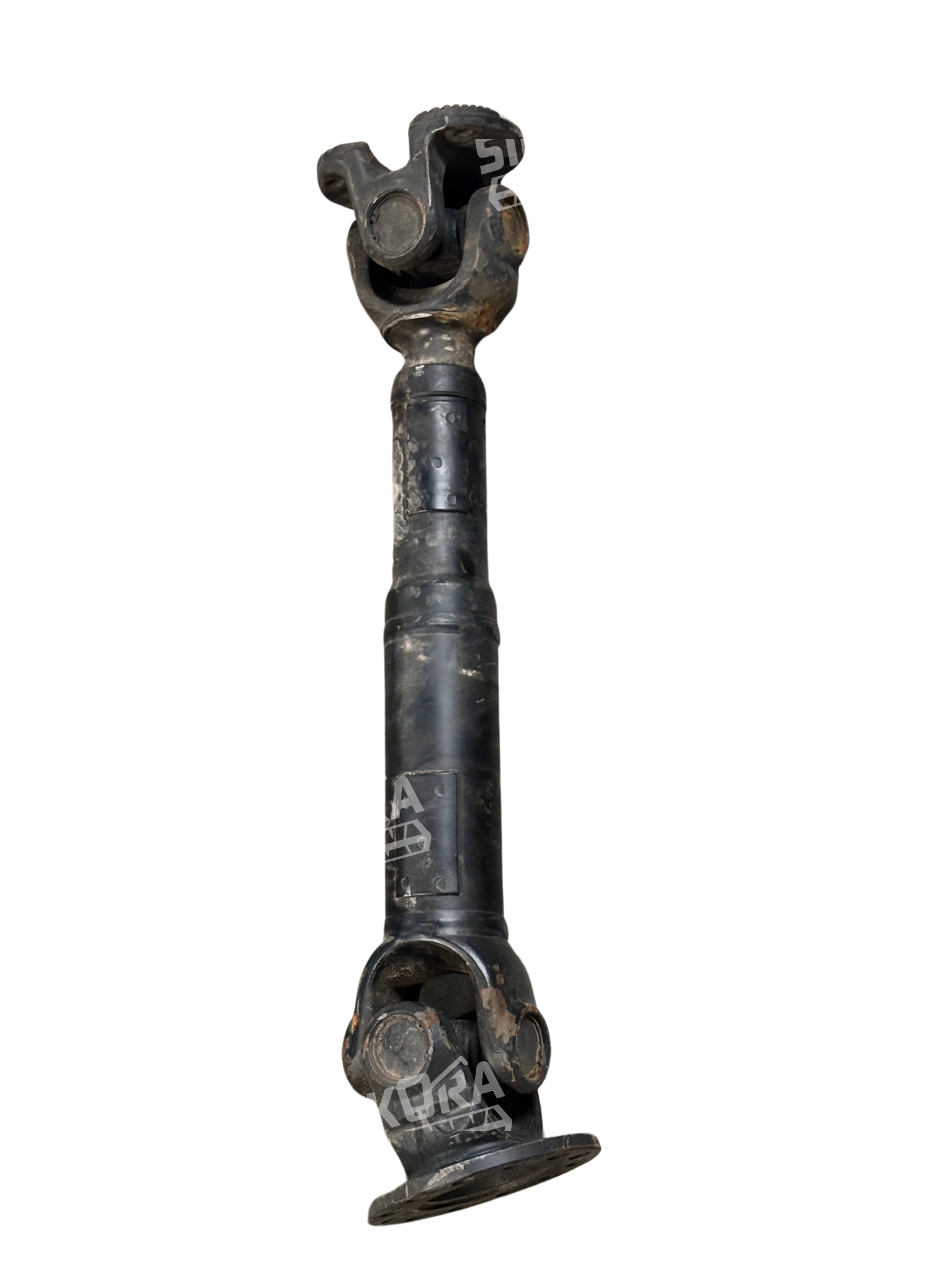

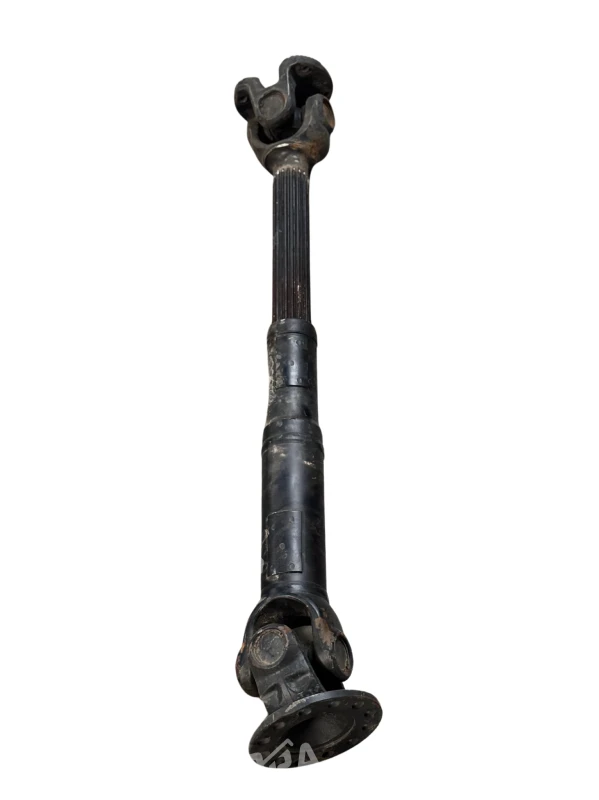

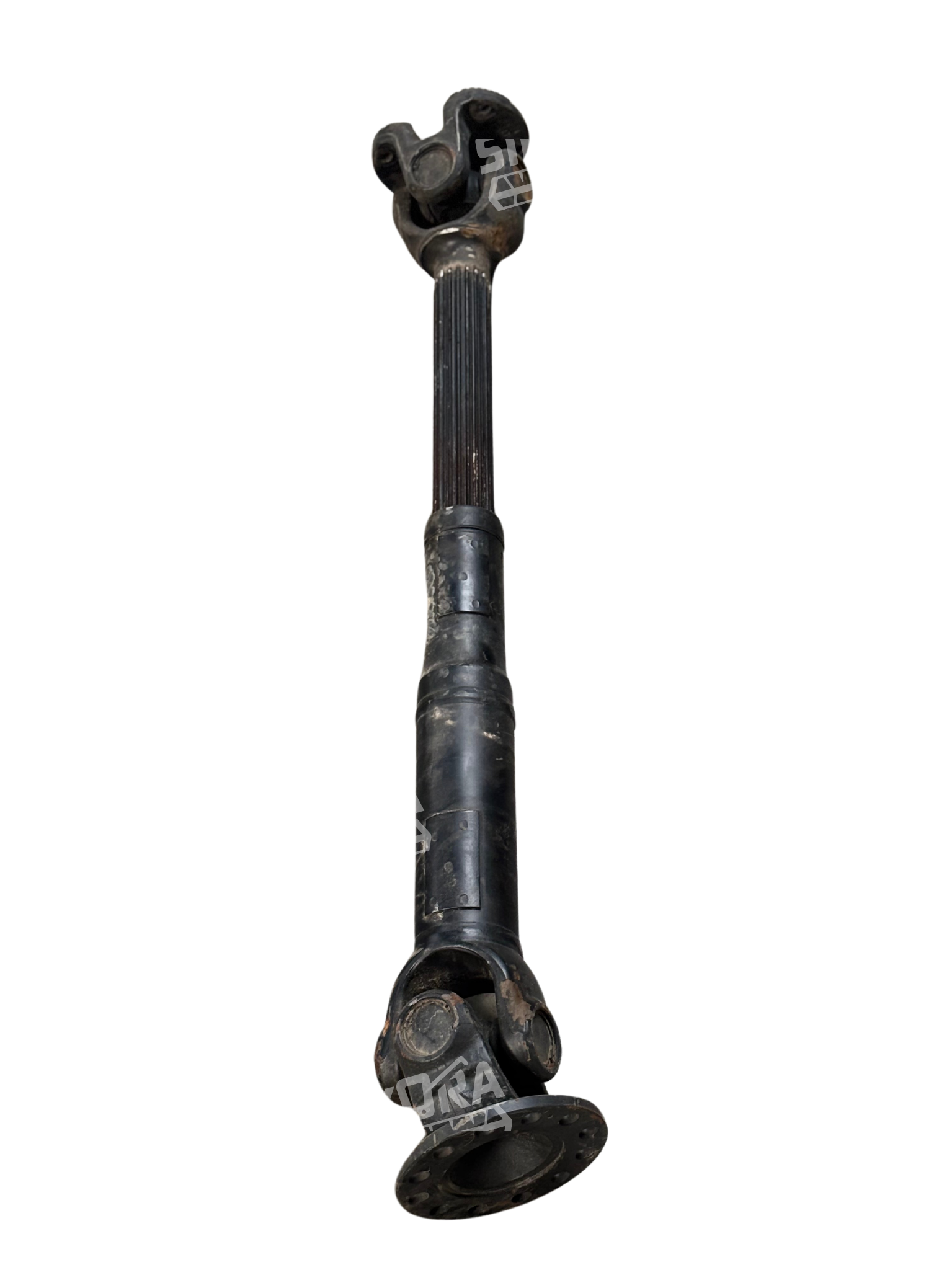

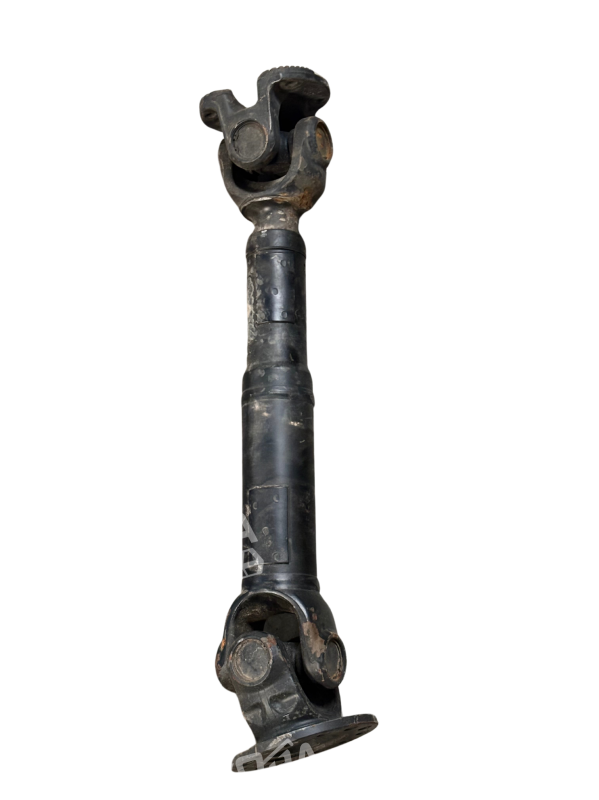

Cardan shaft for CLAAS combine

Cardan shaft for CLAAS combine(cat. no.00 0776 658 1) is a mechanical component that enables the transmission of torque between components whose axes are offset or change their position during operation.Cardan shaft for CLAAS combineutilises universal joints and a telescopic mechanism, allowing for angle and length compensation, ensuring reliable and flexible drive transmission in the dynamic operating conditions of agricultural machinery.

Location of the cardan shaft in the CLAAS machine

Cardan shaft for CLAAS combineis used in various parts of the machine, depending on its configuration. It is often found in theheader drive system, connecting the combine body to the harvesting unit. It can also be installed inattachment drive systems(e.g., for maize),straw chopper drivesandinternal gearboxes, where compensation for the variable positioning of drive elements relative to each other is required.

Application and functions of the CLAAS cardan shaft

The main application fulfilled by theCLAAS combine cardan shaftis the effective transmission of drive under conditions of variable angles or working distances between machine elements. This allows for full component mobility while maintaining continuity of power transmission.

Key technical functions of the CLAAS cardan shaft:

• Torque transmission– ensures efficient transfer of driving force between separate systems.
• Angle change compensation– thanks to universal joints, it enables operation at variable angles between axes.
• Length adjustment– the telescopic design of the shaft allows its length to be changed during operation.
• Vibration damping– absorbs part of the vibrations and dynamic loads of the drive system.
• Durability and reliability– made of durable materials, resistant to variable loads and field conditions.

Application of the cardan shaft in CLAAS combines

Catalogue number00 0776 658 1corresponds to theCLAAS combine cardan shaft, used in various models:

• CLAAS LEXION: 400, 500, 600, 700 series – depending on the application in the header drive or other components.
• CLAAS TUCANO: selected models from the 300, 400, 500 series – in configurations requiring flexible drive transmission.
• CLAAS MEGA / MEDION: also in older models, depending on the mechanical layout of the machine.

Due to the variety of applications, we recommend contacting us.
