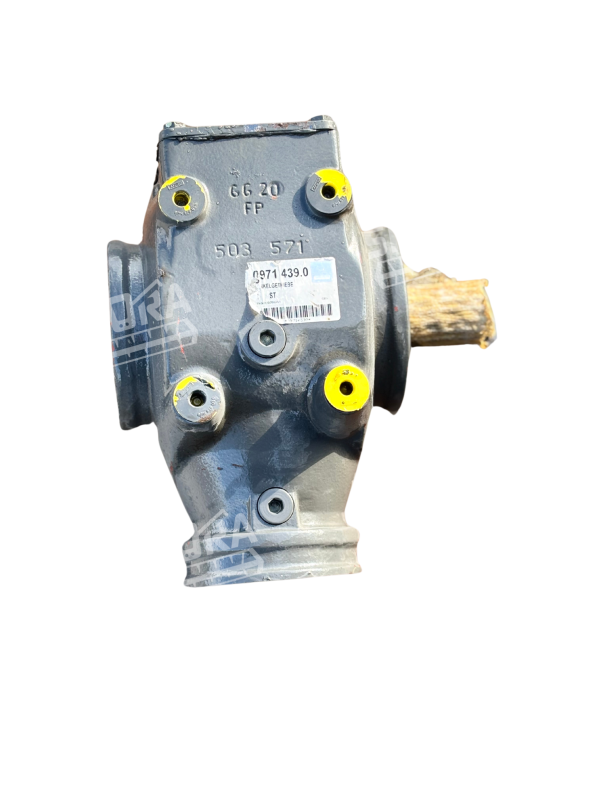

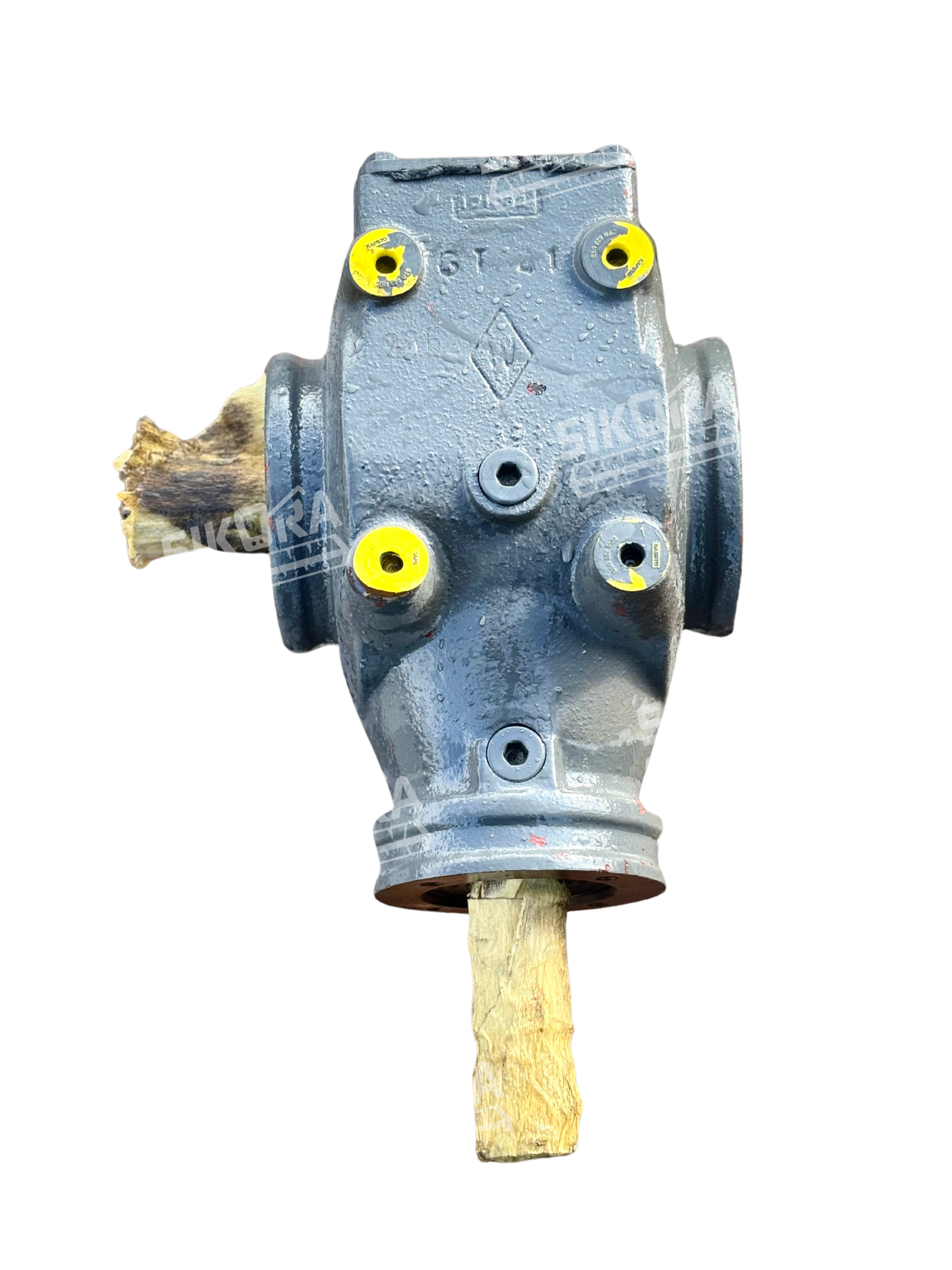

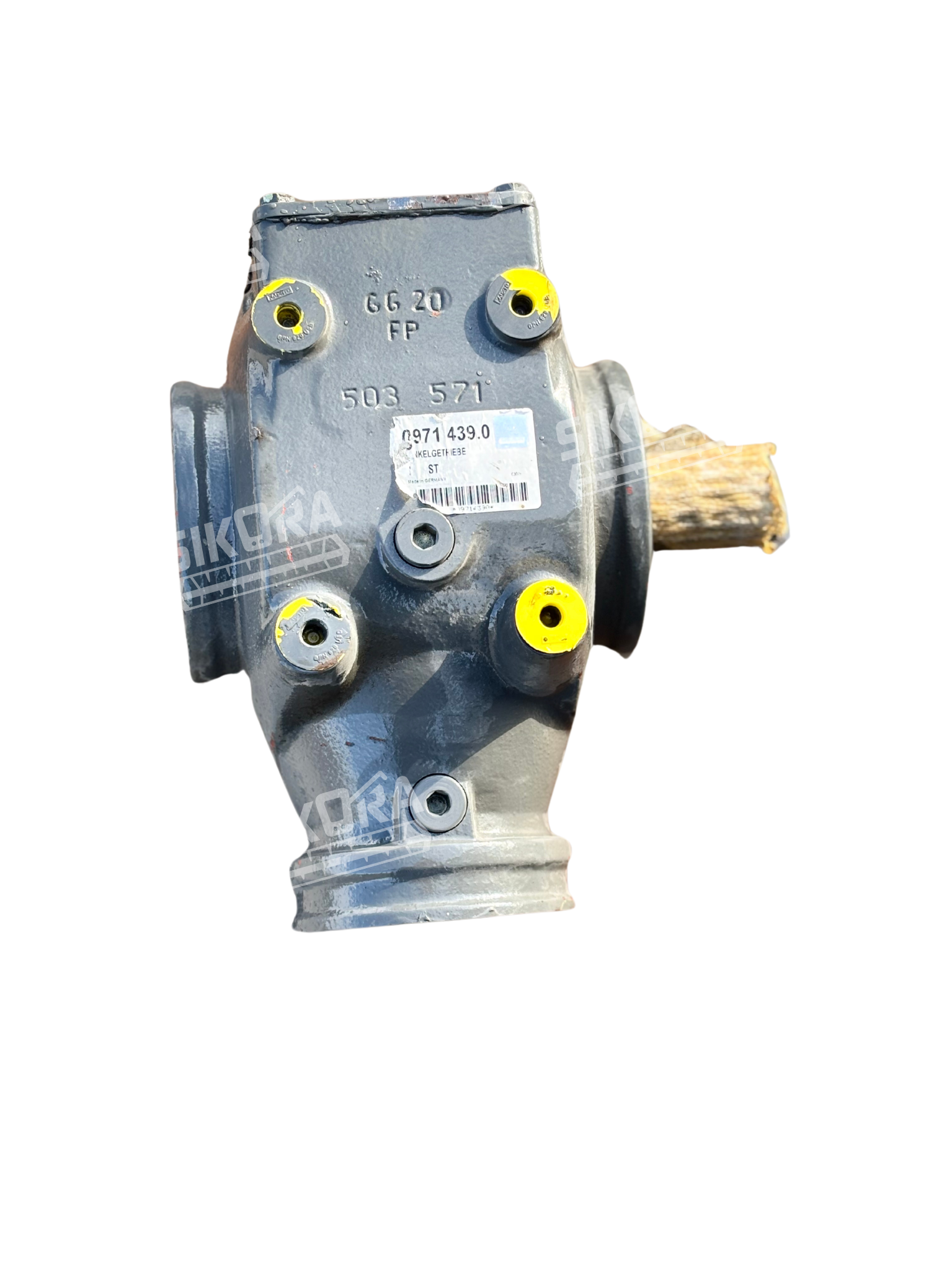

Angle Gearbox for Combine Harvester Knife Drive, Cat. No. 00 0971 439 0 Agrosikora

Angle gearbox for CLAAS combine harvester

CLAAS angle gearbox(catalogue number00 0971 439 0) is a mechanical component responsible for changing the direction of drive transmission between shafts positioned at an angle.Angle gearbox for CLAAS combine harvesteruses bevel gears, enabling efficient torque transfer in a compact form. It is particularly important in places where mounting space is limited and the drive direction must be changed – e.g. from horizontal to vertical.

Location of the angle gearbox in the CLAAS machine

Angle gearbox for CLAAS combine harvesteris used in many parts of the machine's drive system, especially where a change in the plane of rotational motion is required. Typical locations include the header drive – between the PTO shaft and working mechanisms – and internal thresher mechanisms, fans, or tailings and grain elevators. In some designs, it also appears in the drive system – within the drive axles or wheel reducers.

Application and functions of the CLAAS angle gearbox

The primary role performed by theCLAAS angle gearbox, is to enable effective and reliable power transmission in a changed direction. Thanks to appropriate gearing, it can also reduce or increase rotational speed and torque.

Key functions of the CLAAS angle gearbox:

• Change of drive direction– allows for the transmission of motion between shafts at a right angle.
• Torque transmission– ensures stable and durable power transfer.
• Gear ratio adjustment– through the selection of gears, it affects speed and torque.
• Compact design– allows for mounting in restricted spaces of the machine.
• Load resistance– made of hardened steel, adapted for intensive use.

Application of the CLAAS angle gearbox in combine harvester models

Catalogue number00 0971 439 0refers to theCLAAS angle gearbox, which is used in many models:

• CLAAS LEXION: 400, 500, 600, 700 series models – depending on drive configuration.
• CLAAS TUCANO: selected models from the 300, 400, 500 series.
• CLAAS MEGA / MEDION: possible application in older combine harvester models with external gearboxes.

To select the gearbox for a specific application and mounting location,contact us.
