CLAAS Feeding Pan Cat. No. 00 0797 796 1 Agrosikora

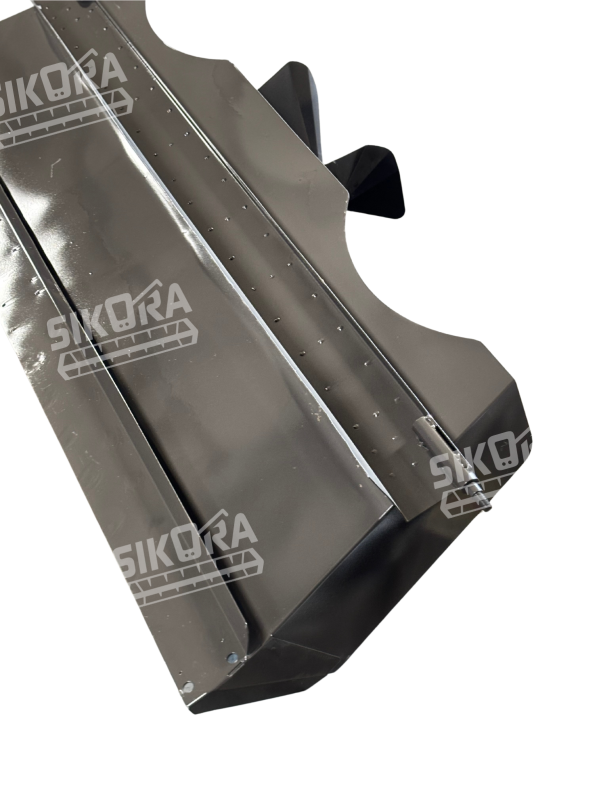

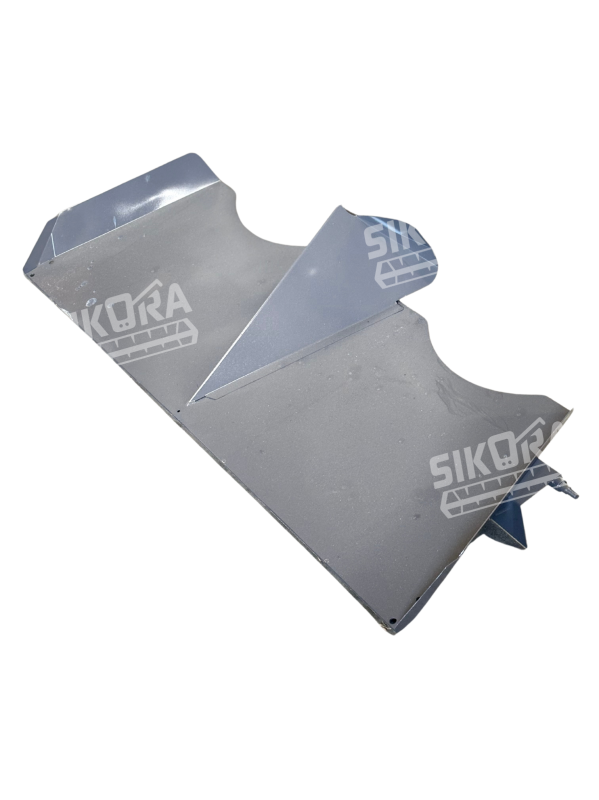

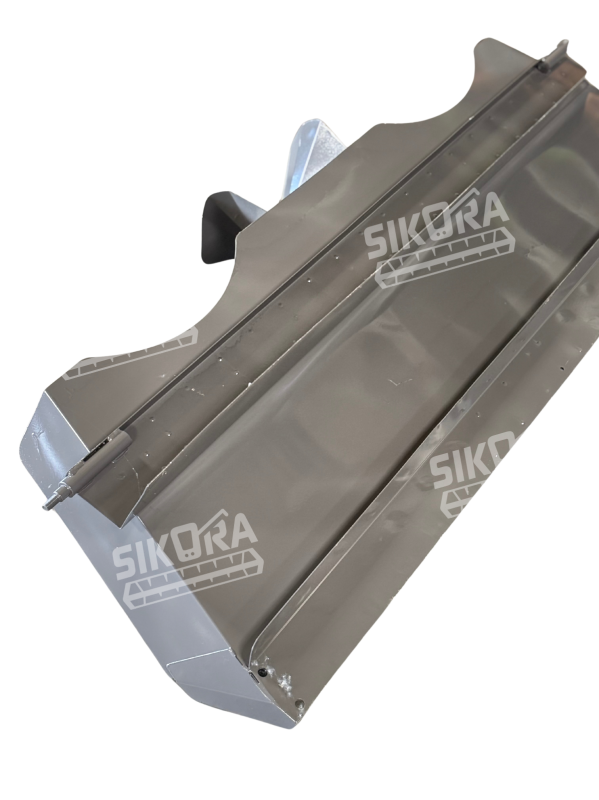

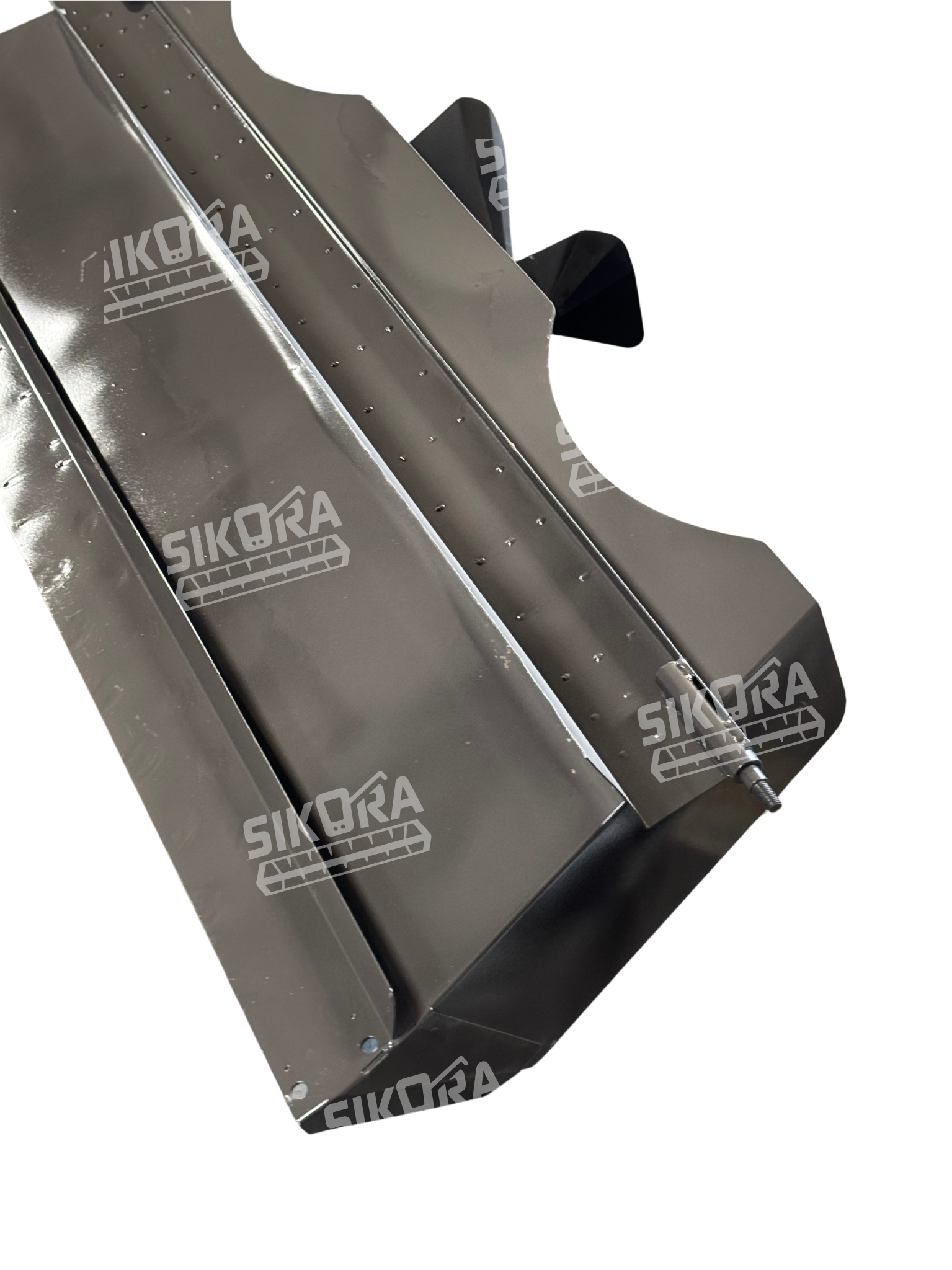

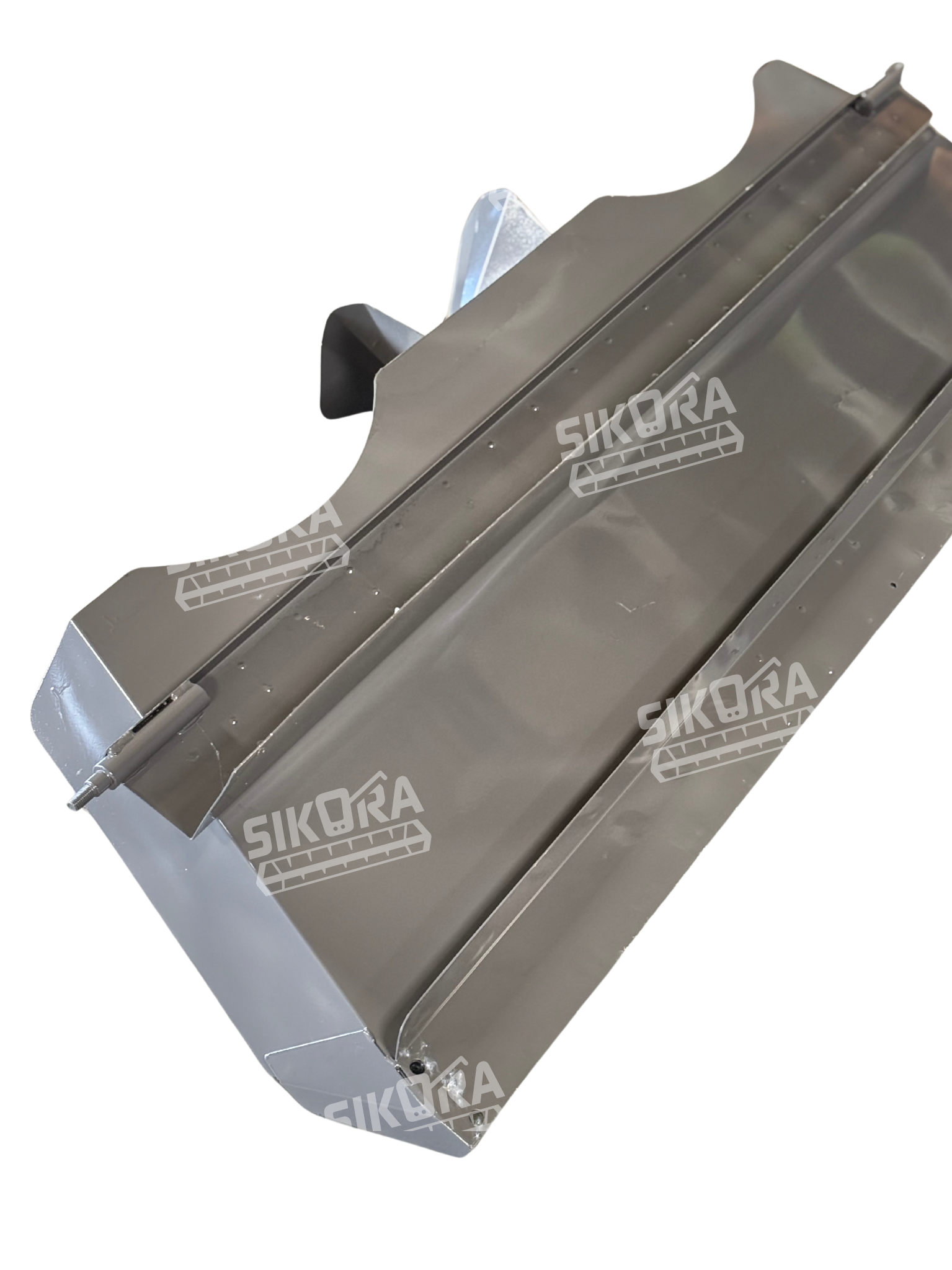

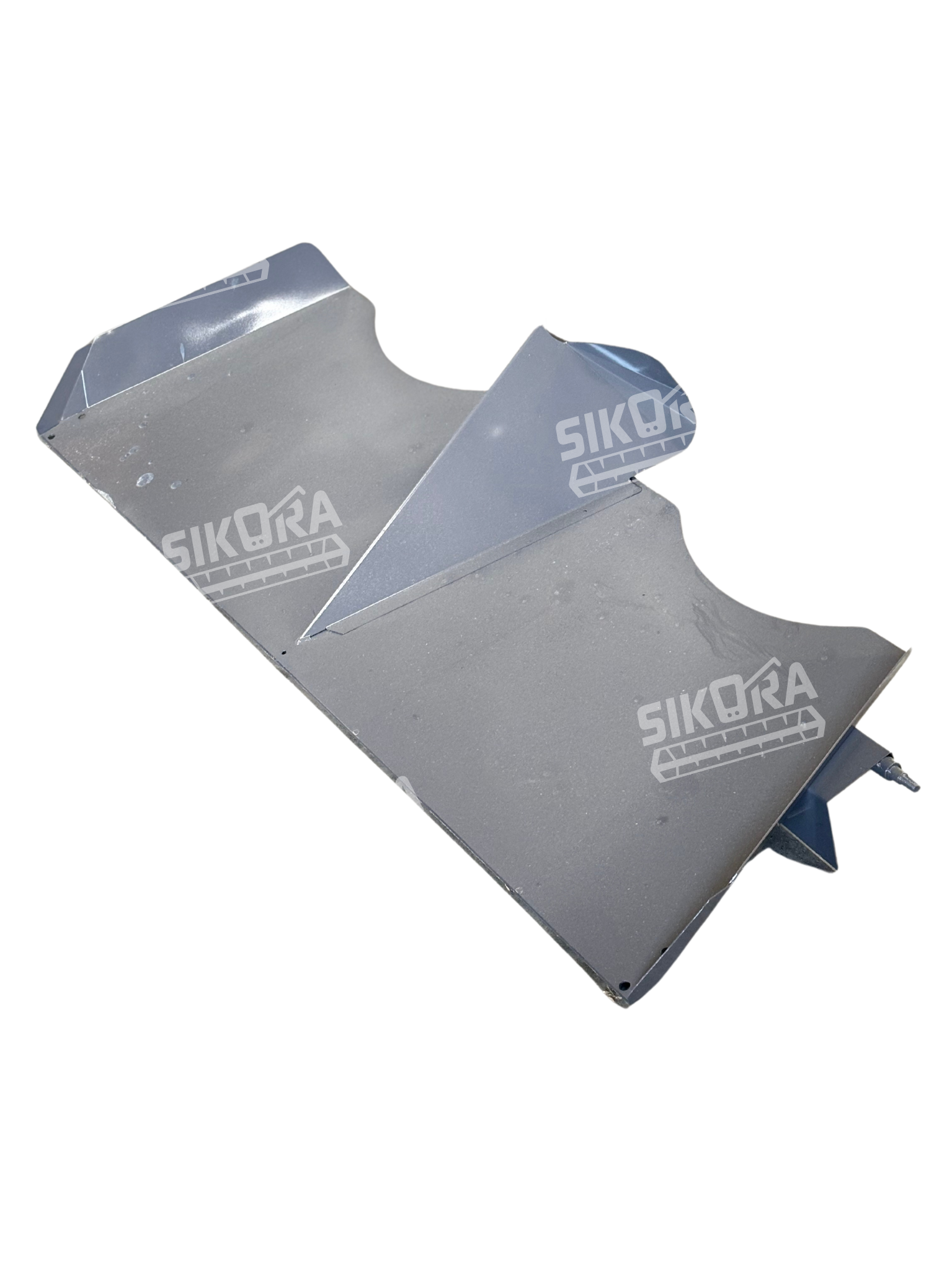

Characteristics of the CLAAS combine harvester feeding pan

The feeding pan for the CLAAS combine harvesteris an element of the internal material transport system responsible for the effective directing of grain, ears, or chaff within cleaning or re-threshing systems. Part number 00 0797 796 1 plays an essential role in maintaining the continuity of the crop flow and minimising losses during harvest.The feeding pan for the CLAAS combine harvesteris made of wear-resistant material, and its shape allows for free and controlled movement of the transported material in the designated direction.

Positioning of the feeding pan in the combine harvester structure

The feeding pan for the CLAAS combine harvesteris mounted depending on its function — it can work under the cleaning sieves, where it collects clean grain and directs it to the grain auger, or under the straw walkers, where it discharges grain and short chaff to further separation stages. In return systems,the CLAAS combine harvester feeding pandirects the material to the threshing or re-threshing drum. The location depends on the architecture of the specific model and the role it plays in the entire material circulation system.

Application and functions of the CLAAS feeding pan

The main task performed bythe feeding pan for the CLAAS combine harvesteris the efficient and safe movement of material — grain, ears, chaff — within the machine, without losses or blockages. Its design supports even distribution and flow of the harvest mass, which directly affects the efficiency of cleaning and re-threshing.The feeding pan for the CLAAS combine harvesteroptimises the efficiency of the separation process, protects against overloading of the material receiving systems, and reduces the risk of debris build-up inside the machine. Thanks to its material resistance, it is adapted for long-term contact with abrasive materials.

CLAAS combine harvester models compatible with feeding pan 00 0797 796 1

Part number 00 0797 796 1 identifiesthe CLAAS combine harvester feeding pan, used in many models with a grain or returns system. This part is used in machine series such asLEXION(models 500, 600, 700, 800), in selected versions of theTUCANOseries (400, 500), as well as in newerTRIONandAVEROmodels, which use similar internal transport solutions. Due to the variety of applications, we recommend that you contact us.
