Drive Shaft for CLAAS Combine Harvesters Part No. 00 0995 838 0 Agrosikora

Characteristics of the drive shaft for CLAAS combine harvesters

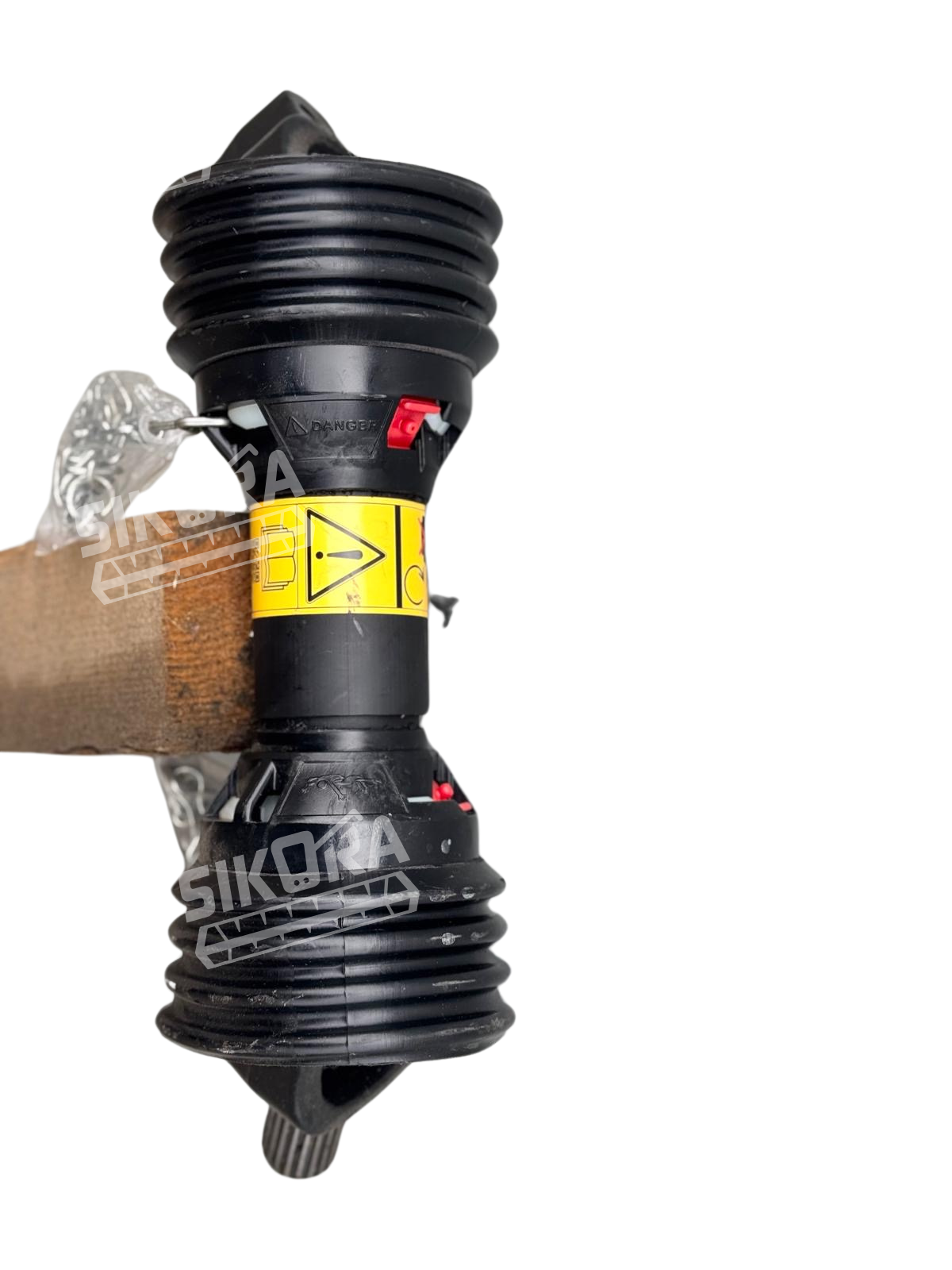

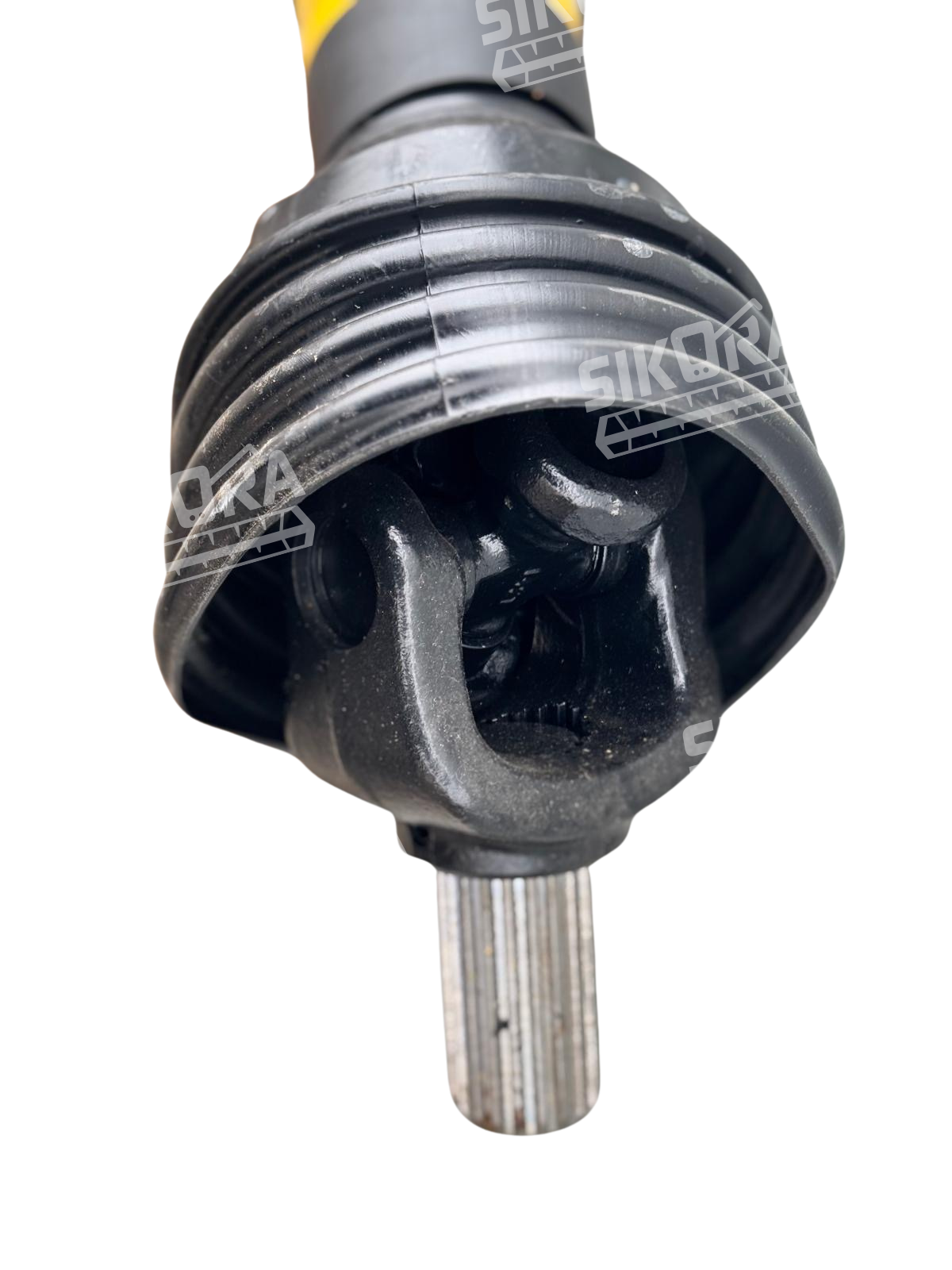

The drive shaft for CLAAS combine harvestersis a key element of the drive system, enabling flexible torque transmission between components whose axes are not collinear or whose relative position changes during operation.The drive shaft for CLAAS combine harvesterswith part number 00 0995 838 0 consists of universal joints and a telescopic section, which allows for the compensation of changes in both angle and length. It is an essential component in machines that operate in varying terrain conditions or with moving working units.

Location of the drive shaft in the CLAAS combine harvester design

The drive shaft for CLAAS combine harvesterscan be used in various parts of the machine, depending on the type of drive. It is most commonly found in the connection between the main drive and the header, where it allows the header to operate at varying angles and different height settings.The drive shaft for CLAAS combine harvestersis also used in drives for straw choppers, maize headers, or internal mechanisms connecting gearboxes with the threshing unit. Its presence allows for the flexible configuration of drive systems without the need for rigid mounting of working elements relative to each other.

Application and functions of the CLAAS drive shaft

The drive shaft for CLAAS combine harvestersis responsible for the reliable and dynamic transmission of power between drive system components. The universal joints enable torque transmission at varying angles, and the telescopic design allows for length compensation during machine operation.The drive shaft for CLAAS combine harvestersalso dampens vibrations and shocks, which translates into a longer lifespan for drive components and a lower risk of mechanical damage. Thanks to its design and durability, it can operate in demanding conditions, ensuring the continuity of combine harvester operation during harvest.

CLAAS combine harvester models compatible with drive shaft 00 0995 838 0

Part number 00 0995 838 0 is assigned to thedrive shaft for CLAAS combine harvesters, which is used in many models of this brand. It is found in theLEXIONseries – including 400, 500, 600, and 700 – as part of the header drive, attachments, or straw chopper.The drive shaft for CLAAS combine harvesterscan also be used inTUCANOmodels (300, 400, 500) and in some variants of older machines from theMEGAandMEDIONseries. Due to the diverse range of applications, we recommend contacting us.
