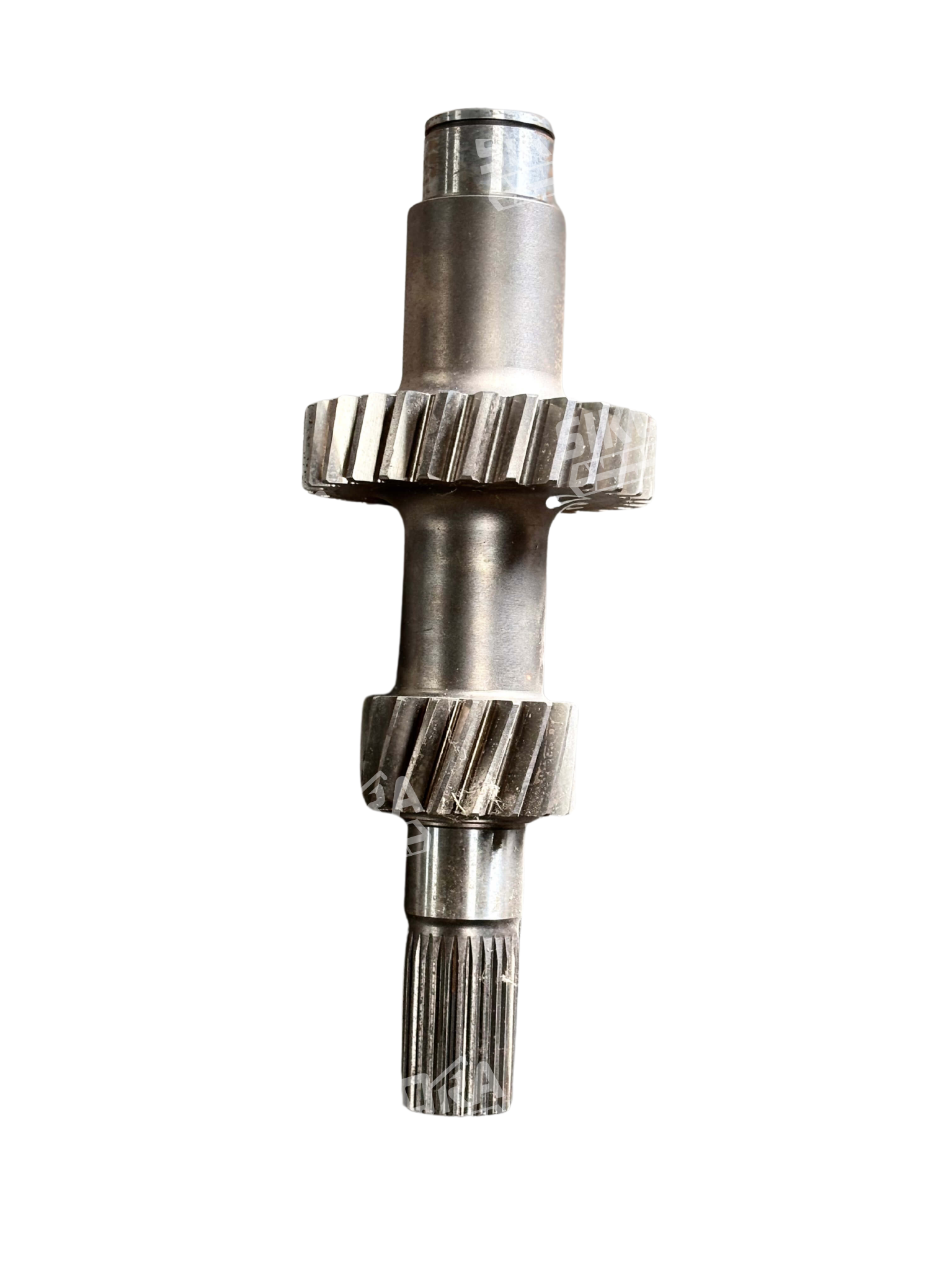

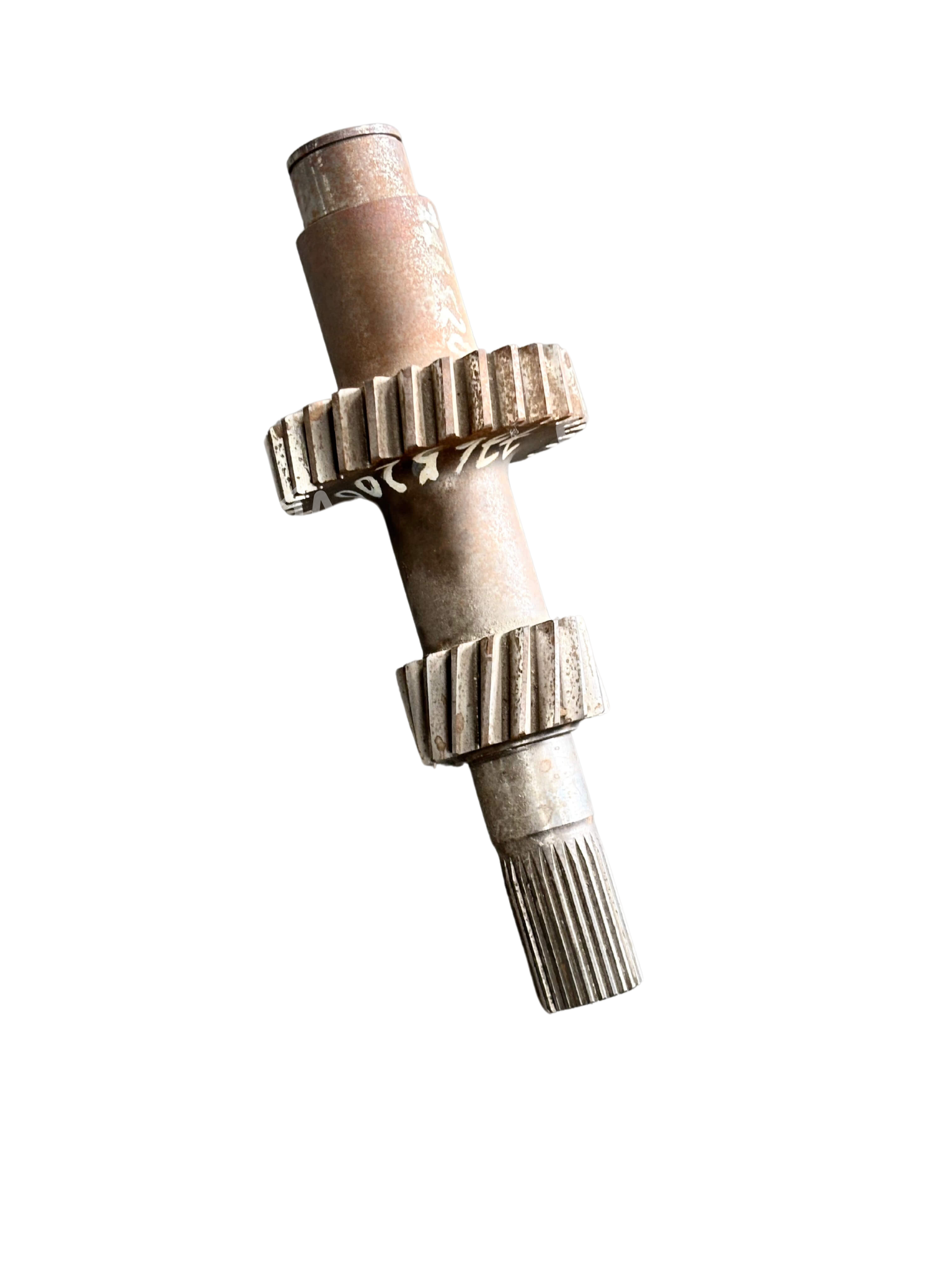

Reel drive shaft with keyway part no. 00 0776 520 0 Agrosikora

Reel drive shaft with keyway for CLAAS combine harvester – part of the harvesting system

Reel drive shaft with keyway for CLAAS combine harvesteris a key component of the cutting unit, whose task is to transmit the drive to the reel. It is the reel that, thanks to its rotating tines, lifts the crop and directs it to the cutter bar and further to the feeder house.Reel drive shaft with keyway for CLAAS combine harvesterinteracts with other drive components via a keyway, which ensures a durable and slip-free mechanical connection – usually by means of a key. The variant with part number 00 0776 520 0 features a design adapted for operation under high dynamic loads occurring during grain harvesting.

Location of the reel drive shaft in the combine harvester header

Reel drive shaft with keyway for CLAAS combine harvesteris located in the upper part of the header, directly above the cutter bar. It runs parallel to its width, forming a structural element of the reel rotation mechanism.Reel drive shaft with keyway for CLAAS combine harvesteris connected to the cutting unit drive system, allowing torque to be transferred to the reel. Its correct positioning and precise mounting are essential for maintaining continuity of work during harvest and reducing crop losses.

Tasks and functions of the reel drive shaft with keyway

Reel drive shaft with keyway for CLAAS combine harvesteris responsible for the smooth and synchronised rotation of the reel, whose movement must be adjusted to the harvesting conditions and crop parameters. Thanks to the presence of the keyway, the shaft creates a secure mechanical connection with the drive elements – which translates into system durability and elimination of slippage.Reel drive shaft with keyway for CLAAS combine harvestertransmits significant torsional and bending loads, therefore its design must be resistant to deformation and mechanical wear. Additionally, correct operation of the shaft contributes to reducing the risk of blockages and grain losses in the initial harvesting phase.

Application of shaft 00 0776 520 0 in CLAAS models

Reel drive shaft with keyway for CLAAS combine harvester, with part number 00 0776 520 0, is used in many combine harvester models of this brand. It is compatible with various header configurations used in machines of the seriesLEXION, including 400, 500, 600 and 700, depending on the design of the harvesting system.Reel drive shaft with keyway for CLAAS combine harvesteris also found in modelsTUCANO– in the 300, 400 and 500 series – and in other CLAAS headers based on analogous technical solutions. Due to the varied applications, we recommend you contact us.
