CLAAS reel drive shaft with keyway, cat. no. 00 0730 532 Agrosikora

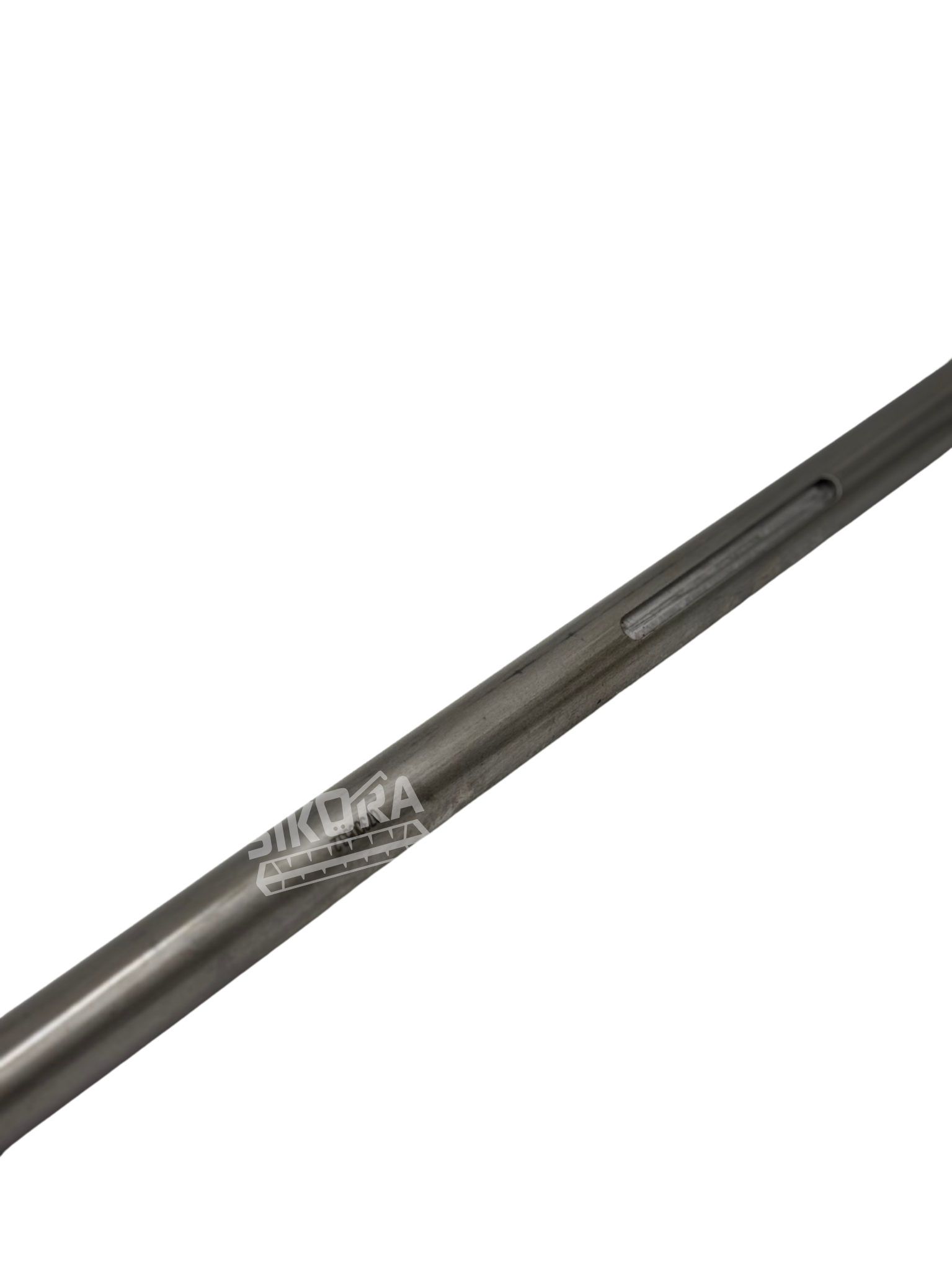

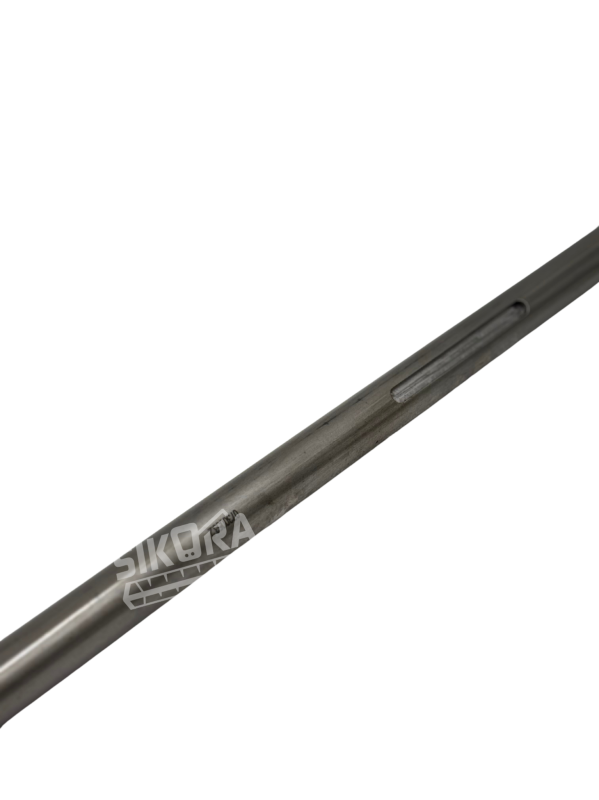

CLAAS combine harvester reel drive shaft with keyway – a key component of the header

The reel drive shaft with keyway for CLAAS combine harvestersis an essential component responsible for power transmission within the header. Its primary task is to ensure the rotation of the reel — the mechanism that directs the cut crop to the cutter bar and further to the feeder house.The reel drive shaft with keyway for CLAAS combine harvestersfeatures a keyway that enables a durable and secure connection with drive elements such as a sprocket, pulley, or clutch. The variant marked with catalogue number 00 0730 532 0 was developed for reliable operation in variable field conditions, where resistance to loads and precision of action are of key importance.

Location of the reel drive shaft with keyway in the header construction

The reel drive shaft with keyway for CLAAS combine harvestersis located in the upper part of the header, parallel to its width. It is an element of the mechanism driving the reel – the shaft with tines positioned above the cutter bar.The reel drive shaft with keyway for CLAAS combine harvestersworks directly with the header drive system, transferring torque from the machine's drive unit to the working element. Its location and mounting method ensure synchronization of the reel's operation with the rest of the cutting unit, which translates into harvesting efficiency and stability of crop transport.

Functions and importance of the reel drive shaft with keyway

The primary function performed by thereel drive shaft with keyway for CLAAS combine harvestersis the efficient transfer of torque to the reel. It ensures its uniform and adjustable rotation, allowing for smooth feeding of material to the cutting mechanism.The reel drive shaft with keyway for CLAAS combine harvestersmust be resistant to significant torsional and bending forces that occur during harvesting. The keyway on the shaft guarantees an exact fit and a durable connection with other drive system components, which is essential for the reliability of the entire system. The shaft's design also allows for its seamless integration with mechanisms regulating the reel speed depending on operating conditions.

Combine harvester models compatible with the CLAAS 00 0730 532 0 reel drive shaft

The reel drive shaft with keyway for CLAAS combine harvesters, marked with catalogue number 00 0730 532 0, is used in selected combine harvester models of this brand. It is found in headers operating with machines of the seriesLEXION(models 400, 500, 600, 700), depending on the type of header used.The reel drive shaft with keyway for CLAAS combine harvestersis also present inTUCANOmodels, especially the 300, 400, and 500 series, which utilize headers of similar construction. It may also be used in other CLAAS headers based on analogous mechanical solutions. Due to various applications, we recommend that you contact us.
