Rotor for CLAAS combine harvester cat. no. 00 0508 420 1 Agrosikora

Technical description of the separating rotor for CLAAS combine harvester

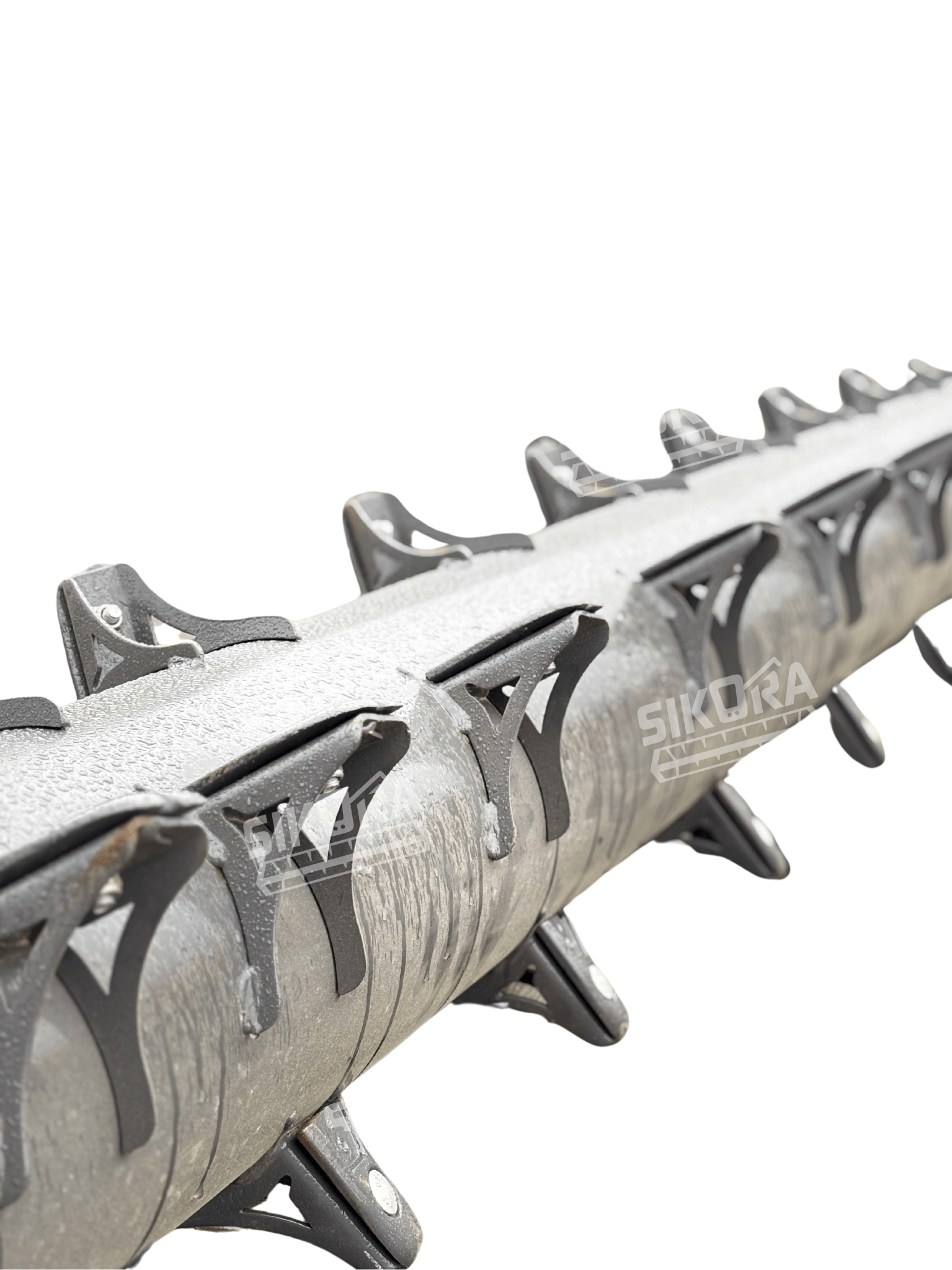

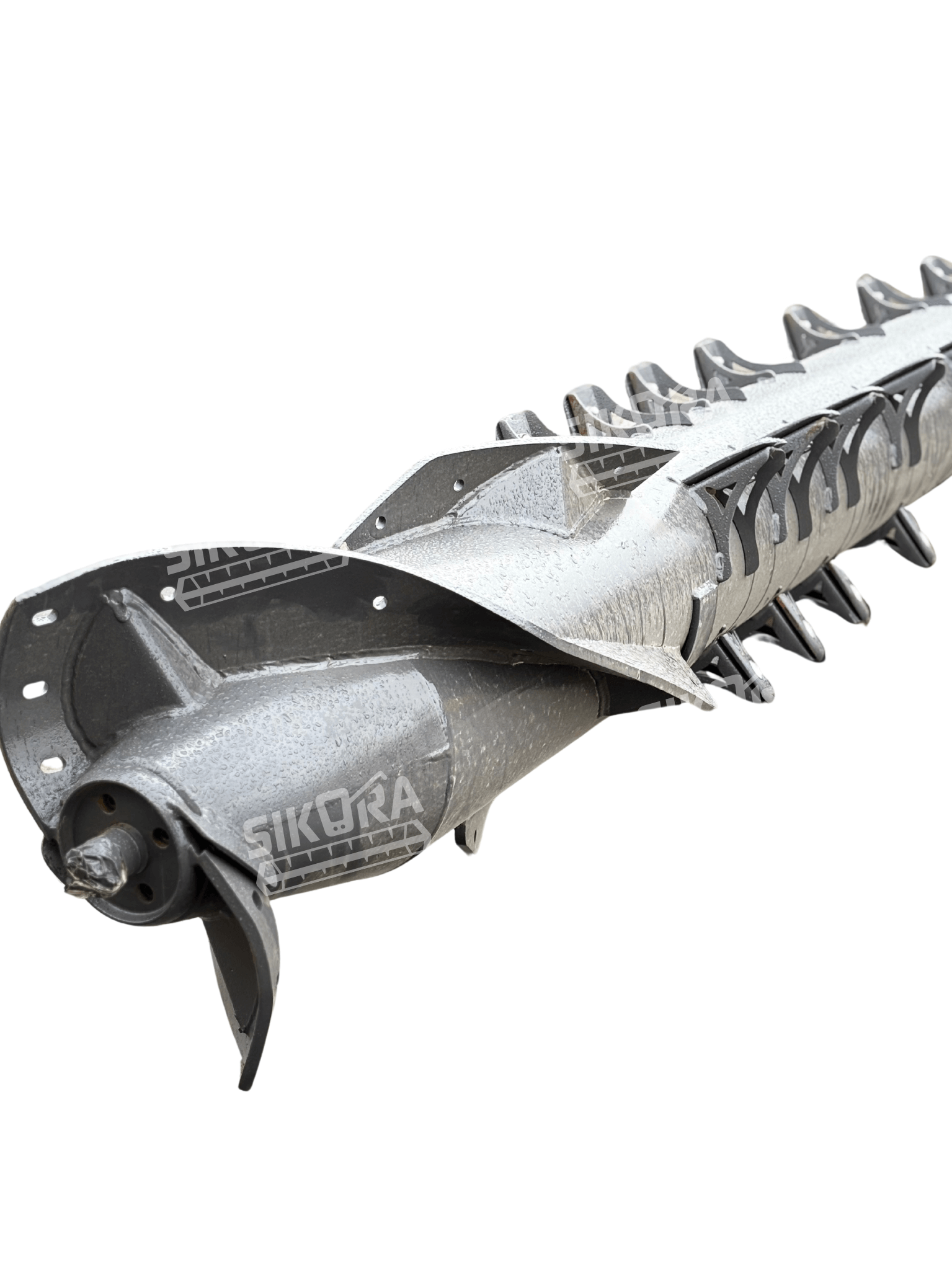

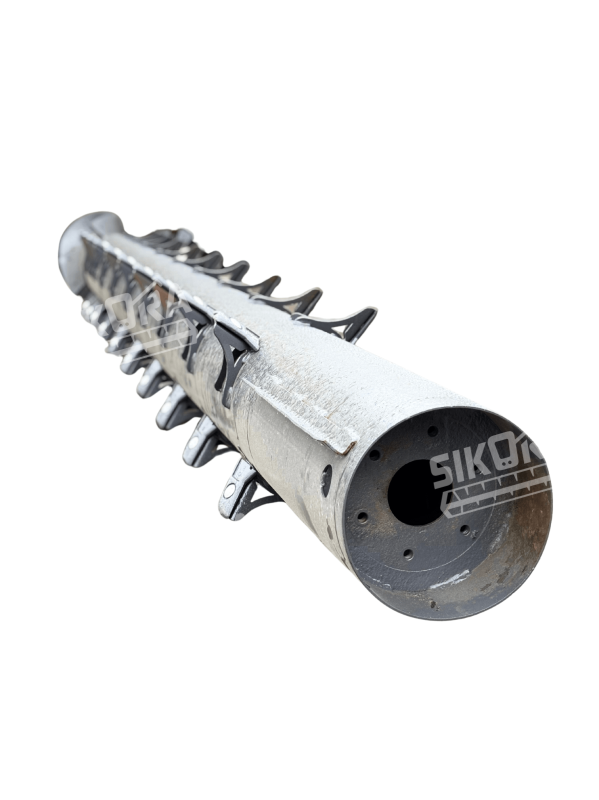

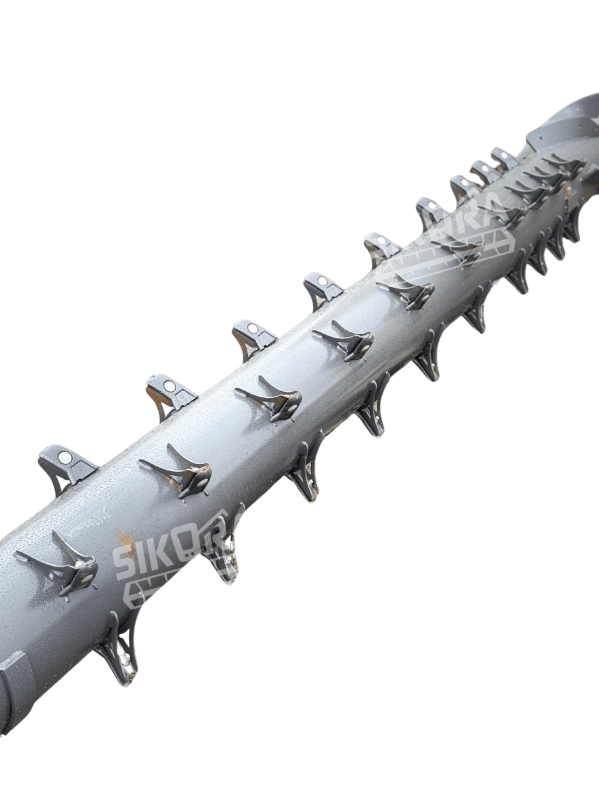

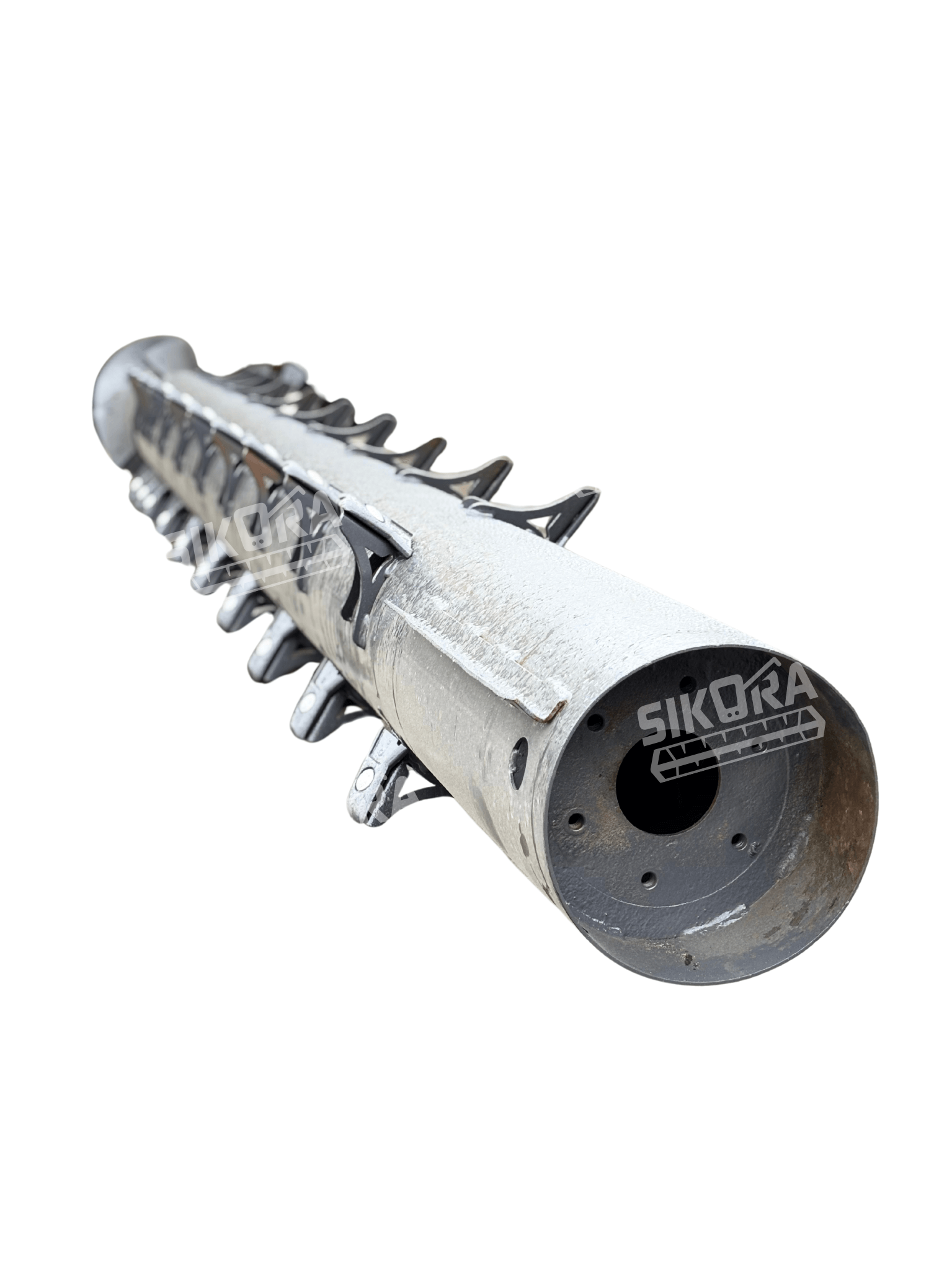

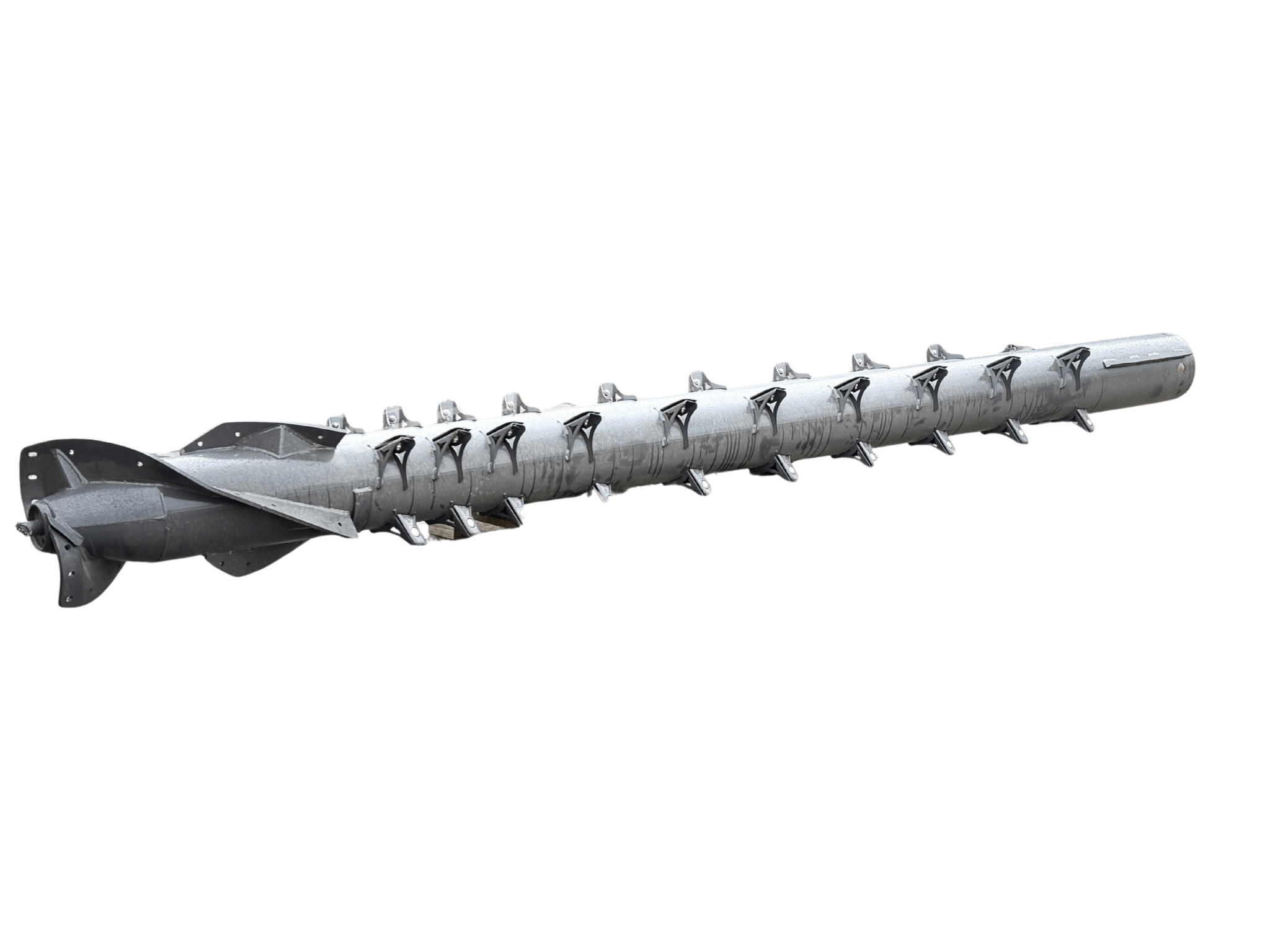

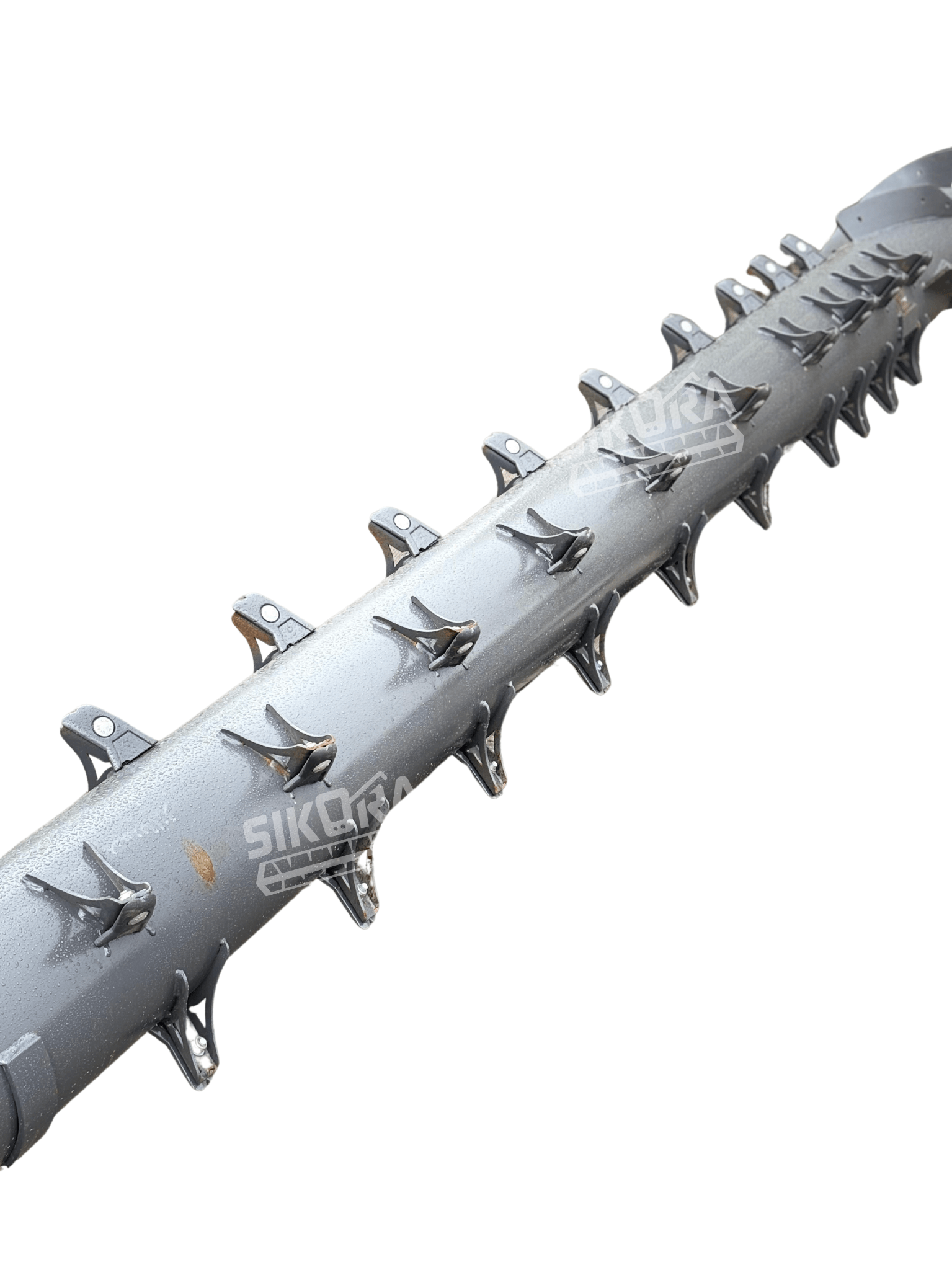

Separating rotor for CLAAS combine harvesterwith catalogue number 00 0508 420 1 is a component of the grain separation system in harvesting machines equipped with APS HYBRID technology.Separating rotor for CLAAS combine harvesteris responsible for the final separation of grain from straw residue after the material passes through the threshing drum. Its design — cylindrical, massive, and dynamically balanced — allows for operation at high rotational speeds. Through the use of centrifugal force and friction, the rotor effectively separates even small grain fractions remaining in the straw mass. This component is a key element of modern hybrid combine harvesters, where high efficiency and low crop losses are required.

Location of the rotor in the CLAAS separation system

Separating rotor for CLAAS combine harvesteris located in the rear part of the threshing unit, behind the main threshing drum. In APS HYBRID systems used in CLAAS combine harvesters, two rotors are typically installed, arranged longitudinally relative to the machine's axis.Separating rotor for CLAAS combine harvesterreceives the straw mass after initial separation and processes it mechanically in an intensive manner, recovering grain residues from it. The cleaned straw then proceeds to the chopper or is laid in a swath. The machine's design provides service access to the rotors through the rear part of the combine, facilitating inspection and maintenance.

Application and key functions of the CLAAS rotor

The main application fulfilled by theseparating rotor for CLAAS combine harvesteris the effective separation of grain residues in the final phase of the threshing process. Thanks to high rotational speed and the action of centrifugal force, the rotor removes grain from the straw with high efficiency, minimising losses.Separating rotor for CLAAS combine harvestersimultaneously transports the straw to the discharge system — directly to the chopper or onto a swath. The ability to adjust its rotational speed allows the rotor's operation to be adapted to specific harvesting conditions, the type of material, and the current machine load. An additional advantage is the increased material processing efficiency compared to straw walker systems.

Compatibility of rotor 00 0508 420 1 with CLAAS combine harvester models

Separating rotor for CLAAS combine harvesterwith catalogue number 00 0508 420 1 is used in machines with the APS HYBRID system, which combine a classic threshing drum with a rotary separation system. It is compatible with many models from the seriesCLAAS LEXION, including Lexion 480, Lexion 570, Lexion 580, Lexion 600, and the Lexion 700 series and newer, in which pairs of rotors are used for intensive grain separation.Separating rotor for CLAAS combine harvesteris a characteristic component of hybrid combine harvesters and is not found in machines equipped exclusively with straw walkers. Due to the varied design of these systems, we recommend contacting us.
