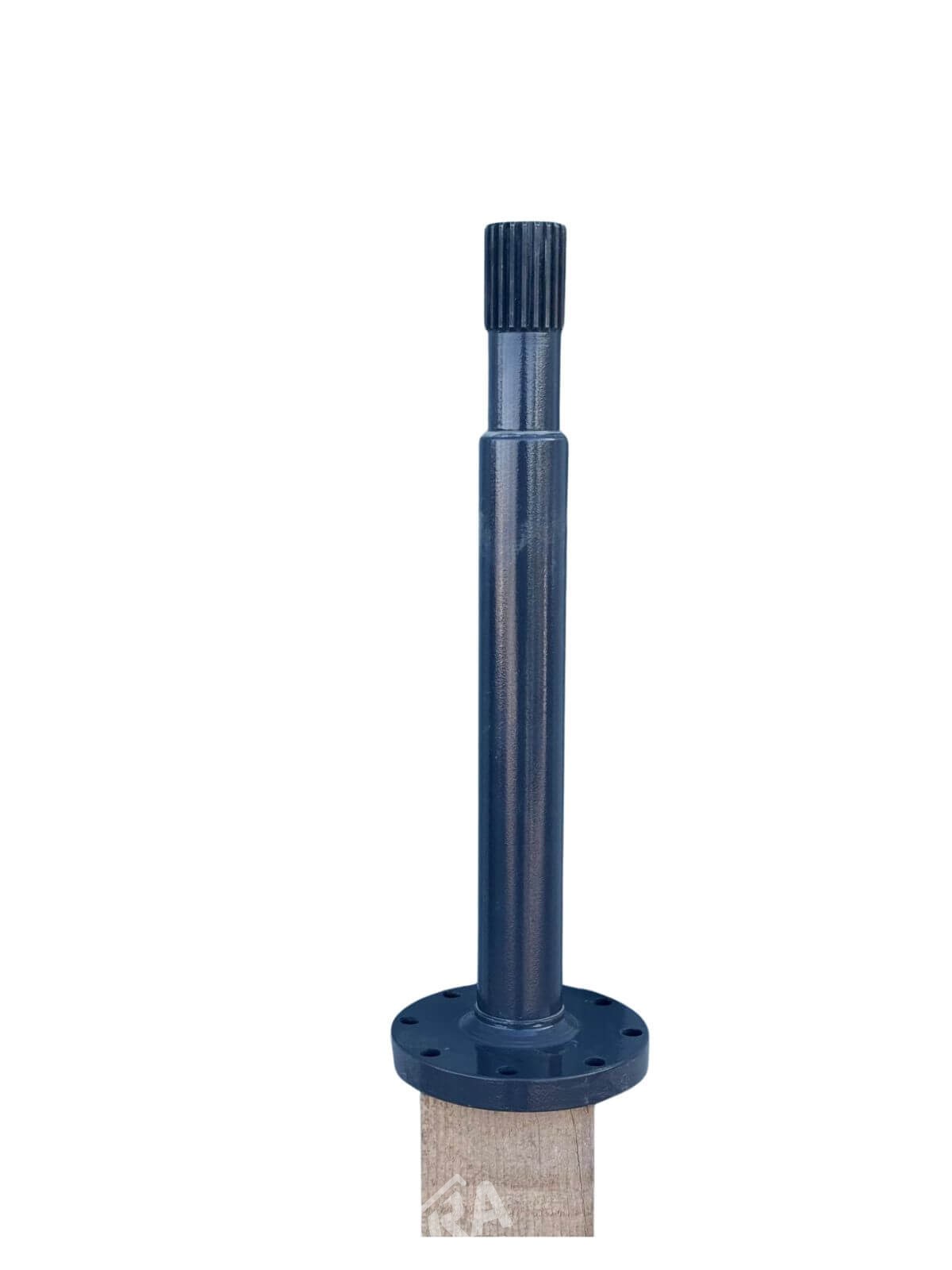

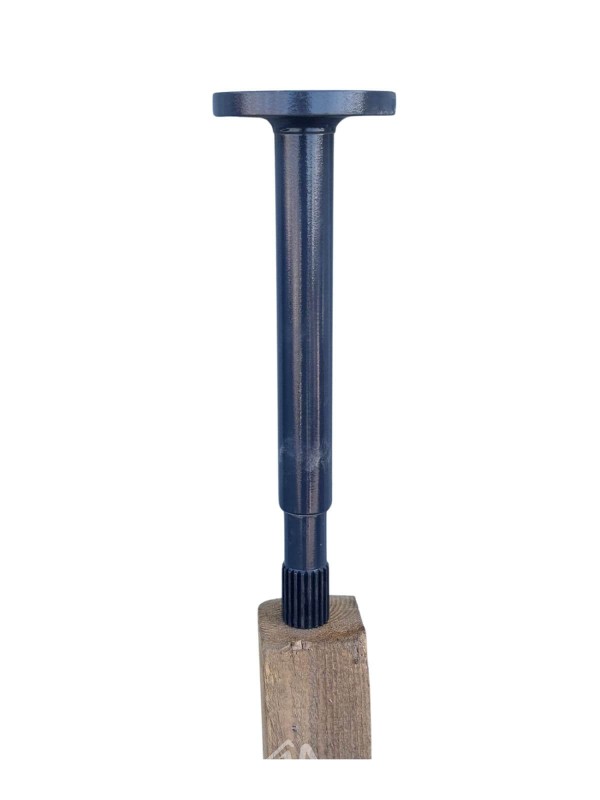

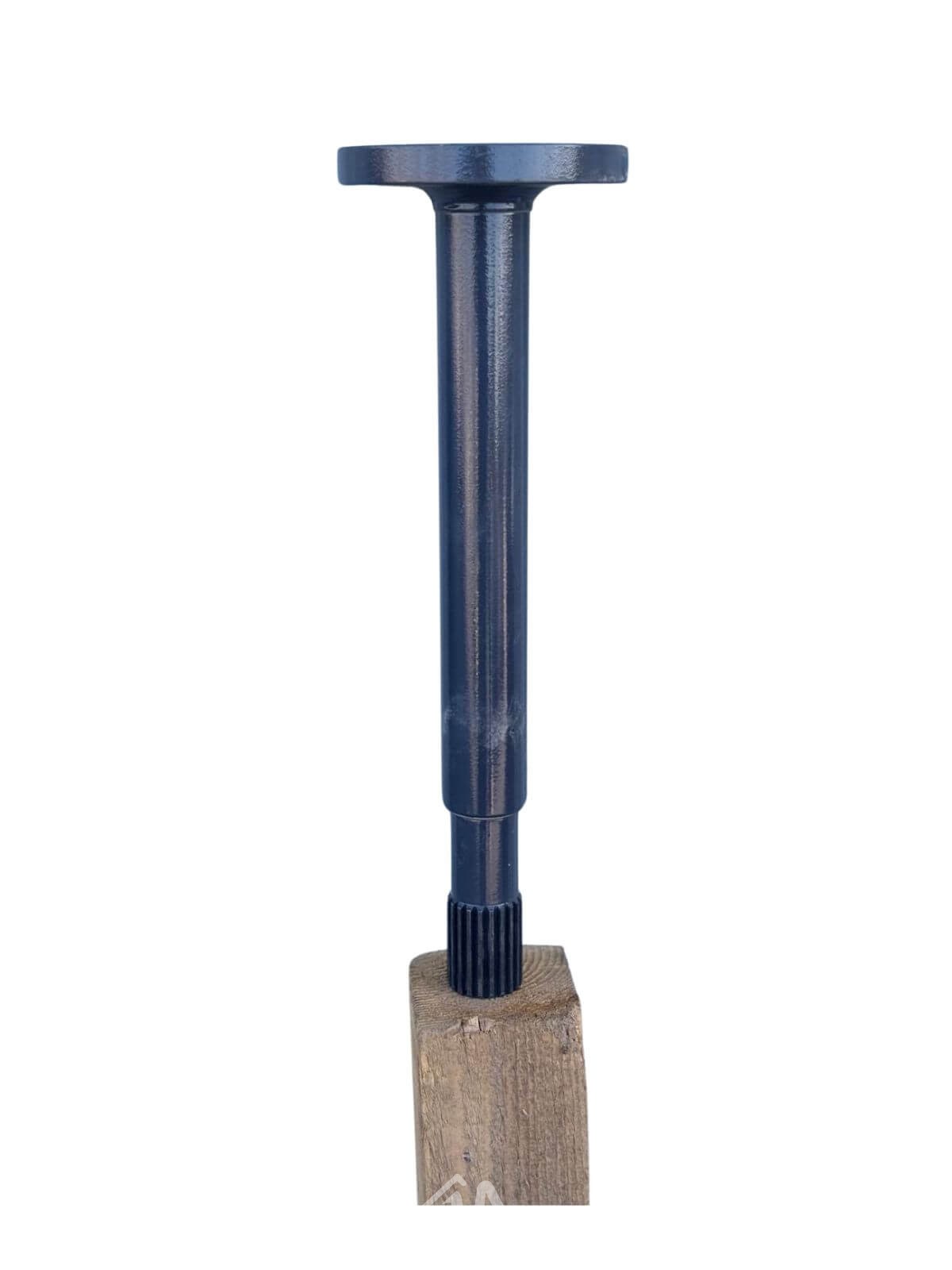

Combine Harvester Gearbox Axle Shaft Cat. No. 00 0769 350 0 Agrosikora

Gearbox axle shaft for CLAAS combine harvester – technical characteristics

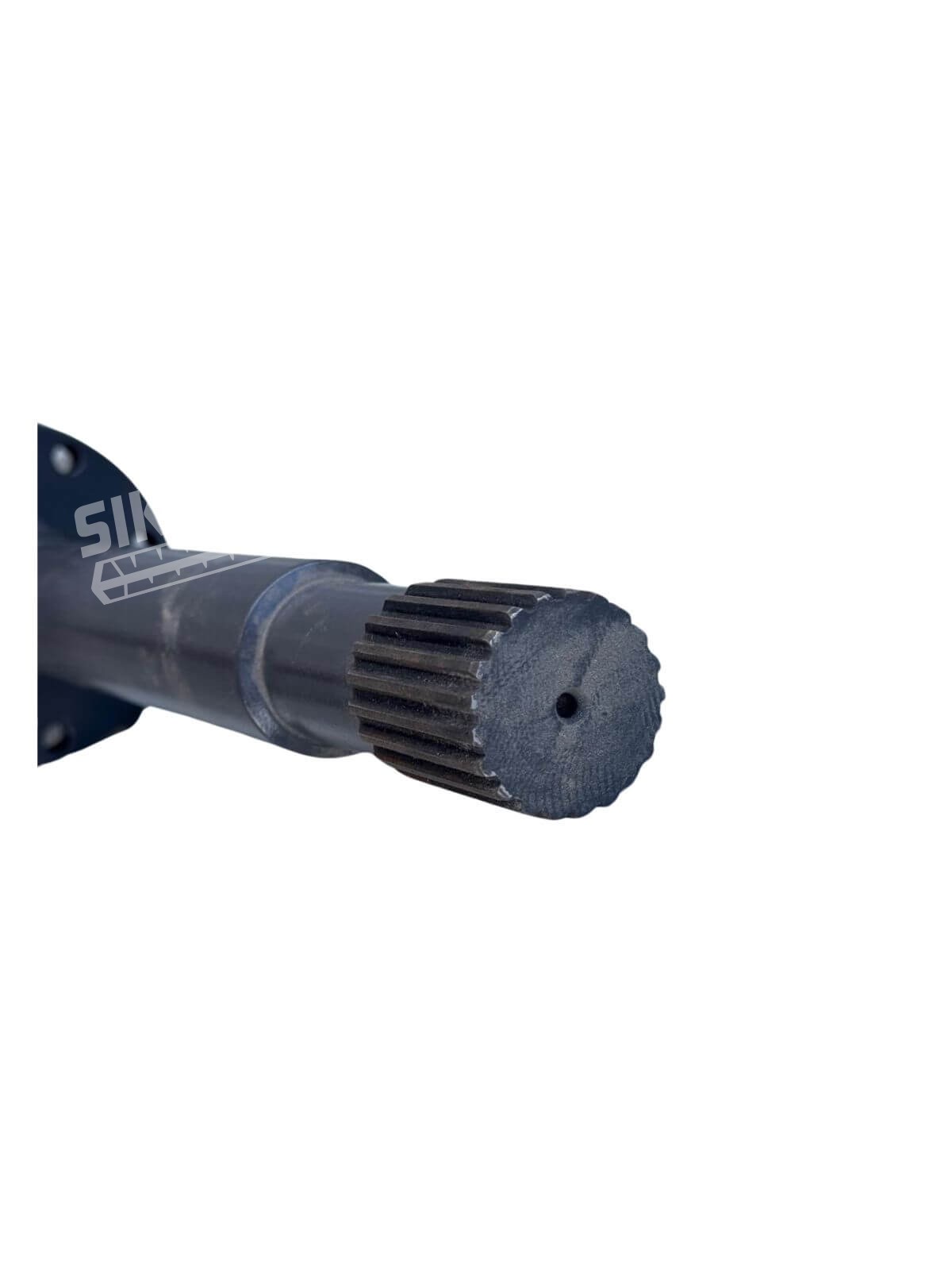

Gearbox axle shaft for CLAAS combine harvester(catalogue no. 00 0769 350 0) is a drive system component responsible for transmitting torque from the transmission to the drive wheel.Gearbox axle shaft for CLAAS combine harvesteroperates under high torsional and dynamic loads, which requires high material strength and precise geometric execution. Its ends are usually profiled (e.g. in the form of a spline), allowing for a secure and backlash-free connection with the final drive, hub, or the gearbox itself. It is a component that determines the efficient movement of the machine and its effective operation in the field.

Location of the gearbox axle shaft in the combine harvester's chassis system

Gearbox axle shaft for CLAAS combine harvesteris located in the machine's chassis system, between the gearbox and the drive wheel hub. In most combine harvesters with mechanical drive, there are two axle shafts – one for the left wheel and one for the right wheel.Gearbox axle shaft for CLAAS combine harvestercan be connected directly to the final drive or via other drive components. It is responsible for both drive transmission and – in many cases – for supporting the wheel, transferring part of the structural loads associated with the machine's weight and terrain conditions.

Application and functions of the CLAAS axle shaft

The primary application fulfilled bythe gearbox axle shaft for CLAAS combine harvesteris the efficient transmission of drive power from the drivetrain to the machine wheels. In addition to the transmission function,the gearbox axle shaft for CLAAS combine harvesteralso provides structural support and rotational stability, especially in situations of high dynamic forces acting on the chassis system. It must be resistant to bending, shearing, and variable torsional forces that occur during work in difficult field conditions. Precision manufacturing is also key – both for fit with the hub and for eliminating backlash that could lead to mechanical failure.

CLAAS combine harvesters compatible with axle shaft 00 0769 350 0

Gearbox axle shaft for CLAAS combine harvesterwith number 00 0769 350 0 is used in selected combine harvester models from the seriesCLAAS LEXION. This applies especially to larger units from the 700 and 800 series, which are equipped with extensive and heavily loaded drive systems. Due to the characteristic design of the transmission and the variety of configurations depending on the year, equipment, and gearbox variant,the gearbox axle shaft for CLAAS combine harvester, we recommend contacting us.
